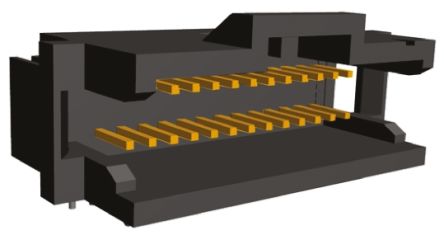

6-104069-3

点击放大查看

6-104069-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 26 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER R/A 26POS T/H 30GOLD TE Connectivity AMPMODU Series 1.27, 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 050X100 HDR 2X13P R/A T/H Conn Shrouded Header HDR 26 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:HeaderConnector Style = Plug26 PositionsNumber of Rows = DualShroudedSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU Header26waypin2.54mmAmpModu TE Connectivity AMPMODU System 50 系列 1.27 mm, 2.54 mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 26 sys 50 hdr drra shrd sn
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量22

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 V ac供电电压30
额定交流电压30连接器阻抗制动器闭锁
击穿电压500最大额定电流1A
绝缘电阻5,000最小供电电压30VAC
保护额定电压（VPR）500 V

机械参数

颜色Black深度13.72 mm
间距1.27 mm高度8.89 mm
底座类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
引脚样式圆形方向直角
排间距0.100" (2.54mm)稳定剂Without
端接方式Solder引脚间距0.100" (2.54mm)
第二连接器With外壳颜色Black
安装类型Right Angle连接器类型Shrouded
接触镀层Gold Over Nickel安装样式Thru Hole
排数2外壳材料（壳体）2- 面
高度（英寸）0.350" (8.89mm)插入件材料铜合金
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度22.86 mm安装特性压具柱体
包装数量Tube面板安装类型通孔
端接排数焊接端接样式Through Hole
外径.381 mm [ .015 in ]板面高度0.125" (3.18mm)
触点数26端接表面处理带罩
位数26触头长度-柱0.350" (8.89mm)
安装孔直径带有接触长度 - 配合0.125" (3.18mm)
端子柱长度2.54 [0.100]接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带每排/每行位置数All
端接镀层厚度150 – 250

产品信息

备注Note 1: Hold down posts located as shown for 16 through 100 position headers.;类型Shrouded Header
连接器性别HDR系列AMPMODU
覆盖范围覆盖钥匙类型否
制造商全称AMP产品子类型Header Assembly
选择性装载No输出配置Through Hole, Right Angle
加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65C to 105C封装热阻1.397 mm [ .055 in ]

文档与媒体

在线文档
6-104069-3?RQPN=6-104069-3

相关型号

2-487938-6

2-487938-6

te connectivity / amp

Conn Housing RCP 26 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 26POS .050 DUAL ROW

详情

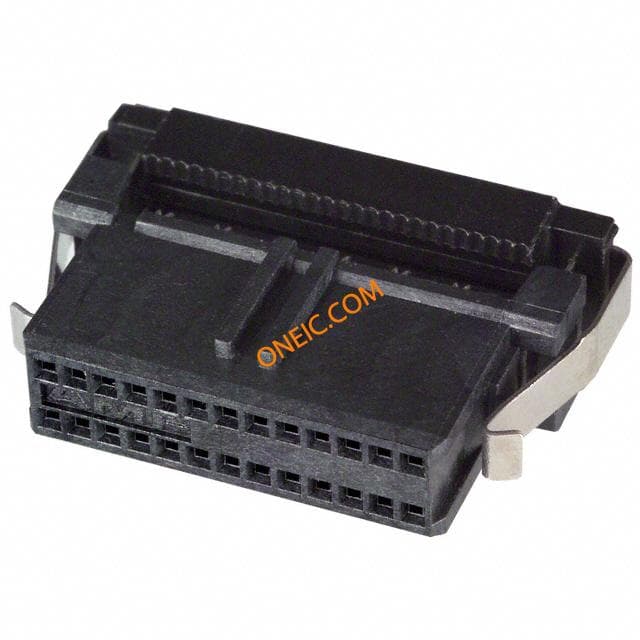

111196-6
