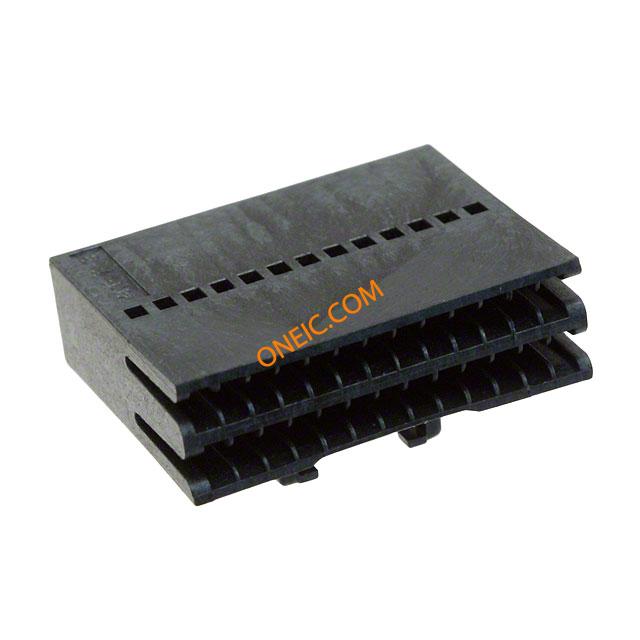

2-487937-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board RCP 26 POS 1.27mm Solder ST Thru-Hole .050 X .100 AMPMODU System 50 CONN RCPT 26POS.050 DUAL W/LATCH FFC & FPC Connectors 26 RCPT 50CL DR LTCH .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 26Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 026 HOUSING FFC 50CL DR LATCH |
| 分类 |
商业参数
| 标准包装规格 | 600 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Request inventory verification / Request inventory verification | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 100V | 供电电压 | 100 |
| 输入电阻 | 5000 | 钳位电压 | 300 |
| 连接器阻抗 | 锁闩, 锁闩 | 击穿电压 | 300 |
| 最大额定电流 | 1.5A | 绝缘电阻 | 5,000 |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | Flexible Flat Conductor Cable |
| 端接方式 | Solder | 第二连接器 | With |
| 边缘接触 | No | 外壳颜色 | Black |
| 安装类型 | 极化 | 连接器类型 | Housing for Female Contacts |
| 安装样式 | Cable | 排数 | 2 |
| 连接器用途 | Receptacle | 插入力 | Normal |
| 锁定特性 | Latch | 壳体材料 | Thermoplastic |
| 包装数量 | 500 | 面板安装类型 | 不带 |
| 端接样式 | 插座 | FFC/FCB厚度 | 0.05-0.08mm |
| 触点数 | 26 | 位数 | 26 |
| 安装孔直径 | 带有 | 中心触点材料 | 1.27 [0.050] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Wire to Board |
| 连接器性别 | RCP | 产品特性 | Latch Lock |
| 产品子类型 | Housing | 扁平柔性类型 | FFC |
环境参数
| 温度范围 | -55 â +105 | 工作温度 | -55°C ~ 105°C |
