1-104666-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADR 26POS DUAL VERT GOLD Headers & Wire Housings 26 SYSTEM 50 HDR DRST SHRD Conn Shrouded Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Header - Pin26 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 26 SYSTEM 50 HDR DRST SHRD |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| 保护特性 | With | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 30 VAC | 供电电压 | 30 |
| 额定交流电压 | 30 | 连接器阻抗 | 制动器闭锁 |
| 击穿电压 | 500 | 最大额定电流 | 1/Contact A |
| 绝缘电阻 | 5,000 | 最小供电电压 | 30VAC |
| 保护额定电压（VPR） | 500 V | ||
机械参数
| 颜色 | Black | 深度 | 8.74 mm |
| 间距 | 1.27 mm | 高度 | 9.91 mm |
| 底座类型 | 不带 | 包装方式 | Tube |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 排间距 | 0.100" (2.54mm) | 稳定剂 | Without |
| 端接方式 | Solder | 第二连接器 | With |
| 触点形状 | Round | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Thru Hole |
| 排数 | 2 | 外壳材料（壳体） | 2- 面 |
| 高度（英寸） | 0.390" (9.91mm) | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 19.81 mm | 包装数量 | Tube |
| 面板安装类型 | 通孔 | 端接样式 | Through Hole |
| 外径 | .381 mm [ .015 in ] | 触点数 | 26 |
| 端接表面处理 | Matte Tin-Lead | 位数 | 26 |
| 安装孔直径 | 带有 | 接触长度 - 配合 | 0.125" (3.18mm) |
| 端子柱长度 | 3.68 [0.145] | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 端接镀层厚度 | 150 – 250 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU System 50 | 钥匙类型 | 否 |
| 制造商全称 | AMP | 产品子类型 | Header Assembly |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度范围 | -65 â +105 |
| 工作温度 | -65C to 105C | ||
文档与媒体
相关型号
2-487938-6
te connectivity / amp
Conn Housing RCP 26 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 26POS .050 DUAL ROW

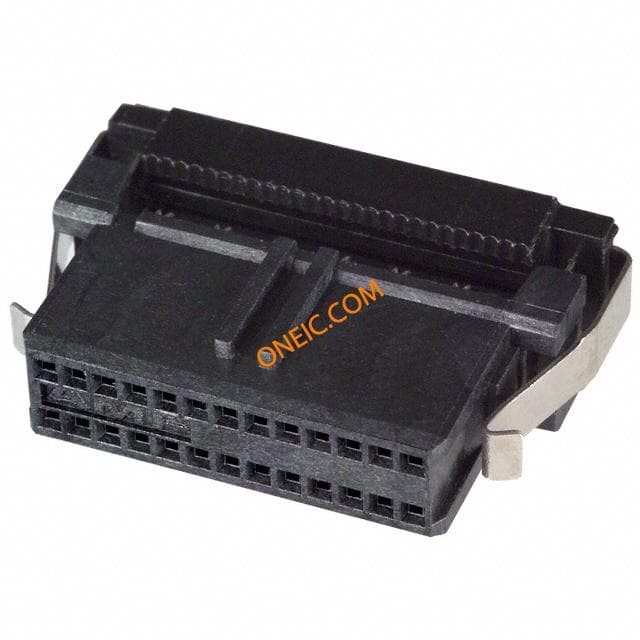

111196-6
