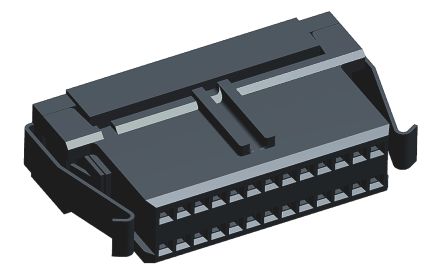

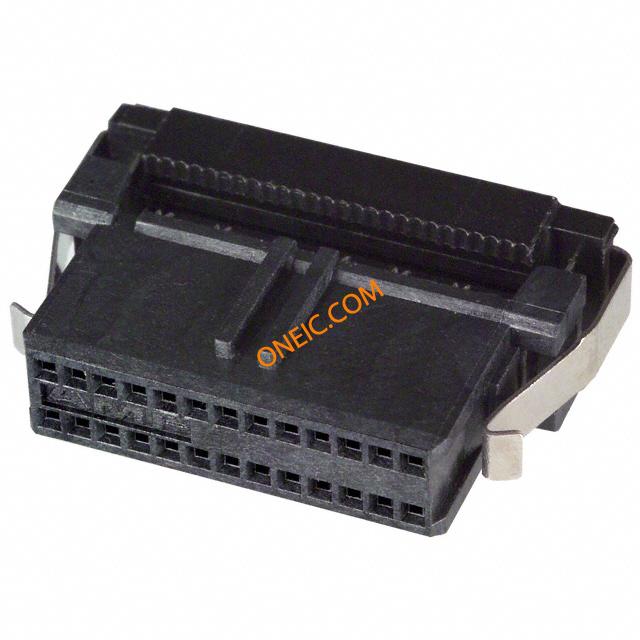

2-111196-9

点击放大查看

2-111196-9

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 26 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 26POS .050X.100" IDC Headers & Wire Housings 26 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 26 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 26Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 026RCPTSYSTEM5030DPLX TE Connectivity AMP-LATCH System 50 系列 2行 26路 0.64mm节距 母 IDC 连接器 , 电缆安装 026 RCPT SYSTEM 50 30 DPLX
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A31859产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量60

合规参数

RoHSLead free / RoHS Compliant材料阻燃等级UL 94V-0

电气参数

额定电压30 V开关功能Latch
供电电压30连接器阻抗锁闩, 锁闩
最大额定电流500 mA绝缘电阻5000 MOhms

机械参数

颜色Black间距1.27 mm
形状矩形高度12.32 mm [ .485 in ]
长度23.114 mm [ .91 in ]包装方式Bulk
导线类型Ribbon Cable壳体颜色黑色
电缆类型带状电缆导线线规30-32 AWG
方向直排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Gold Over Nickel触点时序Without
紧固类型Latch Lock安装样式Wire
排数2插入件材料铜合金
锁定特性带有触头材料Phosphor Bronze
壳体材料Thermoplastic包装数量60
面板安装类型不带端接排数IDC
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数26
端接表面处理带有位数26
衬套/护套类型带有兼容外壳尺寸（如TM-700等）柱体接头组件
安装孔直径带有接触件表面处理 - 配合锡
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带

产品信息

类型IDC Connector连接器性别RCP
系列AMP产品特性Feed Through
产品子类型Receptacles / Sockets - Housings

环境参数

工作温度+105°C
