583649-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONT.CRP.SNAP TW.LF.STRIP Standard Card Edge Connectors CONT.CRP.SNAP TW.LF STRIP .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:ContactContact Type = Bifurcated3.18 mm Centerline, 3.96 mm CenterlineWire Termination Type = CrimpWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors |
| 分类 |
商业参数
| 标准包装规格 | 7,000 | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 连接器阻抗 | 压接 | ||
机械参数
| 间距 | 3.18, 3.96 | 包装方式 | Strip Form |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 柱间距 | .156 |
| 插针或插孔 | Non-Gendered | 连接器类型 | Connector Card Edge |
| 接触镀层 | Gold Over Nickel | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 总长度 | 3.18 [0.125], 3.96 [0.156] |
| 包装数量 | 7000 | 连接器颜色 | Violet |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 1.14 â 2.41 [0.045 â 0.095] |
| 镀层厚度（通用） | 锡铅 | 接触镀层厚度 | 15µin (0.38µm) |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | ||
产品信息
| 连接器性别 | SKT | 产品子类型 | Contact |
文档与媒体
相关型号
1-583864-7
te connectivity / amp
Conn Housing RCP 40 POS 3.18mm Crimp ST .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN 40 DUAL POS HOUSING BLACK Standard Card Edge Connectors HOUSING CSTL 125 C/L 40 POS HOUSING CSTL 125 C/L 40 POS
583873-5
te connectivity / amp
Conn Housing RCP 30 POS 3.18mm Crimp ST DIN 41612 Connectors HOUSING CSTL 125 C/L 15 POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG .125 15DL POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing15 Dual Positions3.18 mm CenterlineWithout Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors HOUSING CSTL 125 C/L 15 POS
1-583859-3
te connectivity / amp
Conn Housing RCP 12 POS 3.96mm Crimp ST Cable Mount CONN CARDEDGE HSNG 6POS DL .156 Standard Card Edge Connectors HOUSING CSTL 156 C/L 6 POS HOUSING CSTL 156 C/L 6 POS HOUSING CSTL 156 C/L 6 POS Search Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors
2-583864-1
te connectivity / amp
Conn Housing RCP 30 POS 3.18mm Crimp ST .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) HOUSING CSTL 125 C/L 30 POS Standard Card Edge Connectors HOUSING CSTL 125 C/L 30 POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing30 Dual Positions3.18 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 60POS
583859-3
te connectivity / amp
Conn Housing RCP 44 POS 3.96mm Crimp ST Cable Mount Standard Card Edge Connectors 22P HOUSING CSTL 156 .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG 22POS DL .156 Conn Housing RCP 44 POS 3.96mm Crimp ST Cable Mount Product Highlights:Housing22 Dual Positions3.96 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors HOUSING CSTL 156 C/L 22 POS
1-583859-5
te connectivity / amp
Conn Housing RCP 24 POS 3.96mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG 12POS DL .156 Standard Card Edge Connectors BLADE SLUG 12 POS 1-583859-5 Conn Housing RCP 24 POS 3.96mm Crimp ST Cable Mount Product Highlights:Housing12 Dual Positions3.96 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 24POS HOUSING CSTL 156 C/L 12 POS

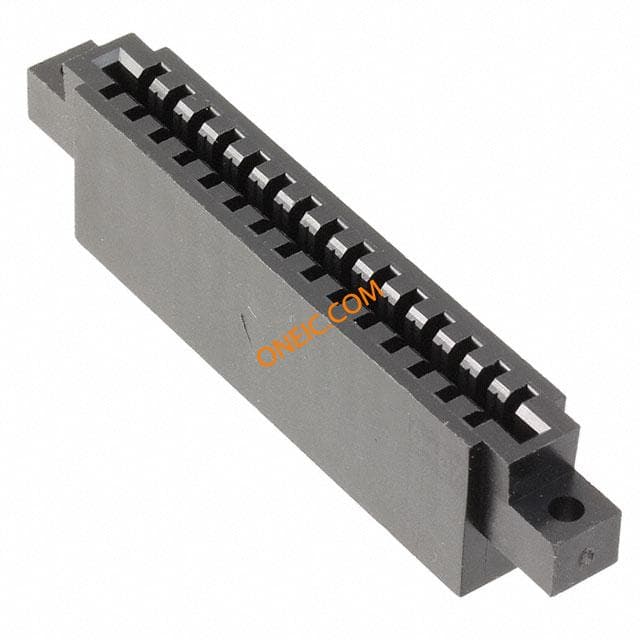

583859-7
te connectivity / amp
Conn Housing RCP 30 POS 3.96mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG 15POS DL .156 Standard Card Edge Connectors HOUSING CSTL 156 C/L 15 POS Conn Housing RCP 30 POS 3.96mm Crimp ST Cable Mount Search Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 30POS HOUSING CSTL 156 C/L 15 POS
583859-9
te connectivity / amp
Conn Housing RCP 20 POS 3.96mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) TW LF HSG 156 C/L Standard Card Edge Connectors TWN LF CONN 10 POS Conn Housing RCP 20 POS 3.96mm Crimp ST Cable Mount Product Highlights:Housing10 Dual Positions3.96 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors

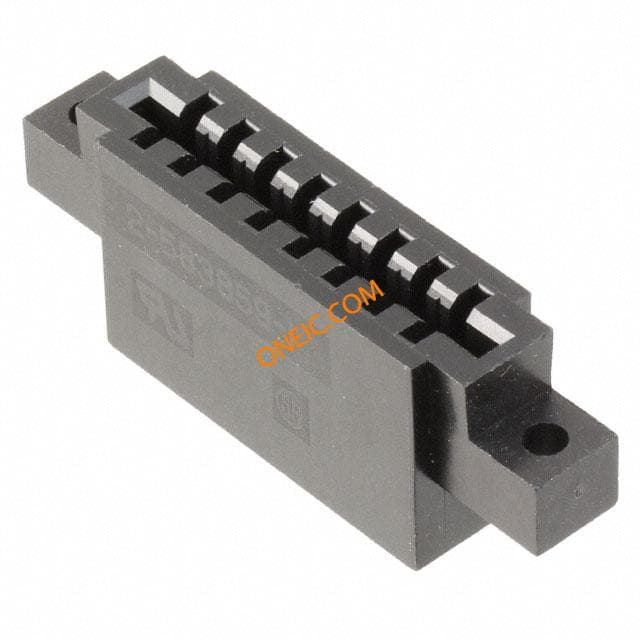

2-583859-1
