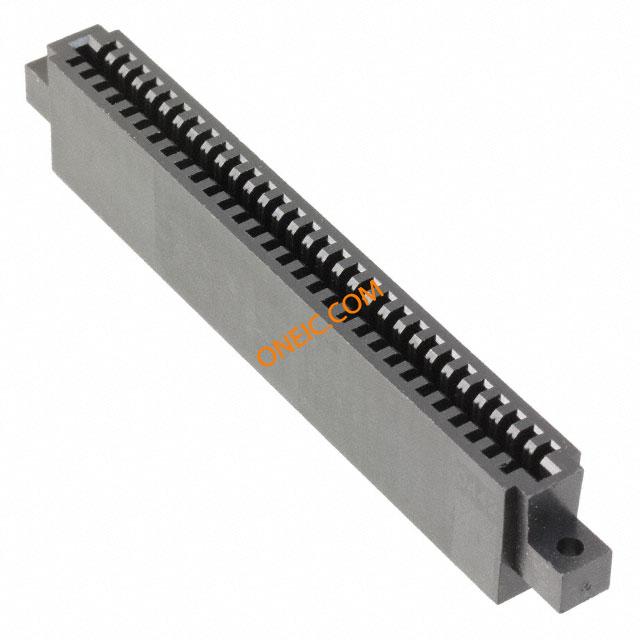

2-583864-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 30 POS 3.18mm Crimp ST .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) HOUSING CSTL 125 C/L 30 POS Standard Card Edge Connectors HOUSING CSTL 125 C/L 30 POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing30 Dual Positions3.18 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 60POS |
| 分类 |
商业参数
| 标准包装规格 | 125 | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 压接 | ||
机械参数
| 颜色 | Black | 间距 | 3.18 mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 卡厚度 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 法兰特征 | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia |
| 排数 | 2 | 高度（英寸） | .75 |
| 壳体材料 | Polyester GF | 总长度 | 4.035 |
| 安装特性 | With | 包装数量 | 125 |
| 触点数 | 30 | 位数 | 60 |
| 绝缘材料 - 材质 | Polyester Thermoplastic, Glass Filled | 中心触点材料 | 3.18 [0.125] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Flange |
| 卡类型 | Non Specified - Dual Edge | 产品子类型 | Housing |
| 转换前位置数 | 30 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
