583616-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CONTACT 28-24AWG CRIMP GOLD Standard Card Edge Connectors TWIN LEAF TERM. 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Bifurcated2.54 mm Centerline, 3.18 mm Centerline, 3.96 mm CenterlineWire Termination Type = CrimpWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors TWIN LEAF TERM. |
| 分类 |
商业参数
| 产品类别 | Standard Card Edge Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 7000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 压接 | ||
机械参数
| 间距 | 2.54, 3.18, 3.96 | 包装方式 | Strip Form |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 柱间距 | .156 |
| 插针或插孔 | Non-Gendered | 连接器类型 | Connector Card Edge |
| 接触镀层 | Gold Over Nickel | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 总长度 | 2.54 [0.100], 3.18 [0.125], 3.96 [0.156] |
| 包装数量 | 7000 | 连接器颜色 | Orange |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 0.89 â 1.40 [0.035 â 0.055] |
| 镀层厚度（通用） | 镀金 | 接触镀层厚度 | 50µin (1.27µm) |
| 线规或范围 - mm² | 0.08-0.24² [28-24] | ||
产品信息
| 连接器性别 | SKT | 系列 | 583616 |
| 产品子类型 | Contact | ||
相关型号

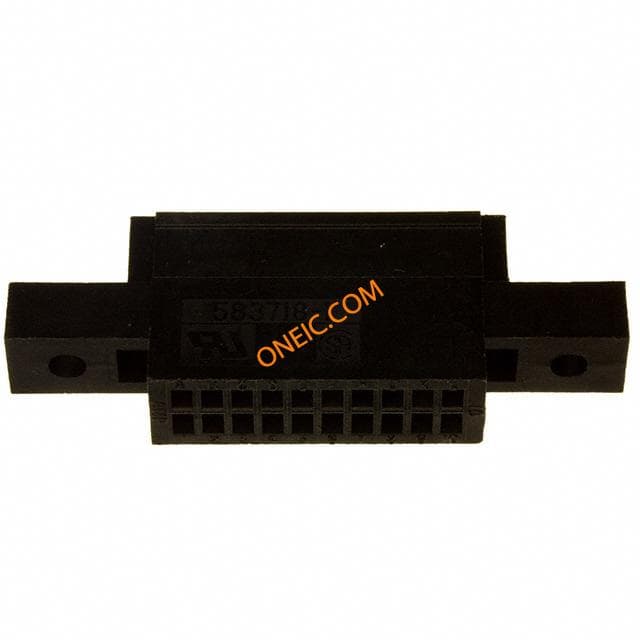

583718-9
te connectivity / amp
Conn Housing RCP 44 POS 2.54mm Crimp ST Cable Mount Standard Card Edge Connectors TW-LEAF CRP HSG 22P 100 C/L .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN HOUSING CRMP 0.100CL 44POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing22 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 44POS TW-LEAF CRP HSG 22 POS 100 C/L
2-583717-1
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HOUSING 6DL POS Standard Card Edge Connectors TW LEAF CRP HSG. 6P .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing6 Dual Positions2.54 mm CenterlineWithout Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors TW LEAF CRP HSG. 6-POS.
583717-5
te connectivity / amp
Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HOUSING 17DL POS Standard Card Edge Connectors 17 POS TWIN LEAF CRP HSG 17 POS TWIN LEAF CRP HSG 17 POS TWIN LEAF CRP HSG Search Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors

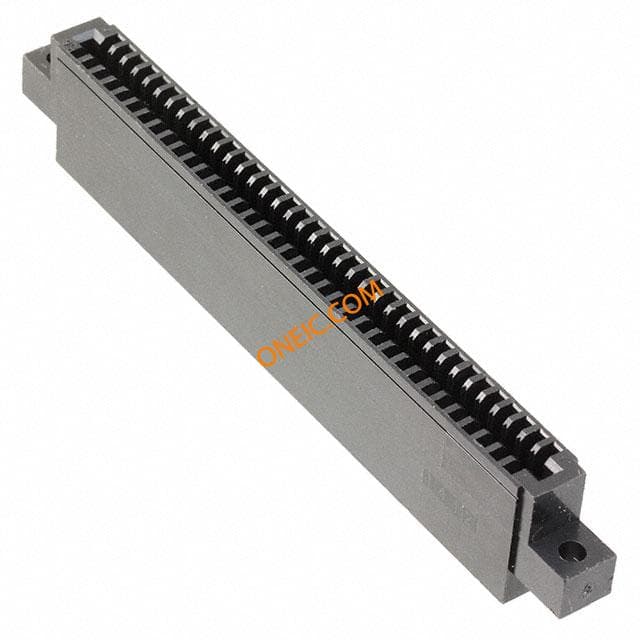

2-583861-5
te connectivity / amp
Conn Housing RCP 72 POS 2.54mm Crimp ST Panel Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG .100 36DL POS Standard Card Edge Connectors TW LF CRP HSG 36 POS Conn Housing RCP 72 POS 2.54mm Crimp ST Panel Mount Product Highlights:Housing36 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 72POS TW LF CRP HSG 36 POS
1-583861-1
te connectivity / amp
Conn Housing RCP 34 POS 2.54mm Crimp ST Panel Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) TW-LEAF CRP. HSG 17 POS. 100 C DIN 41612 Connectors TYPE B 125P RA CARD .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing17 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 34POS
583861-3
te connectivity / amp
Conn Housing RCP 80 POS 2.54mm Crimp ST Panel Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG .100 40DL POS Standard Card Edge Connectors TW-LF CRP HSG 40 POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing40 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors TW-LF CRP HSG 40 POS

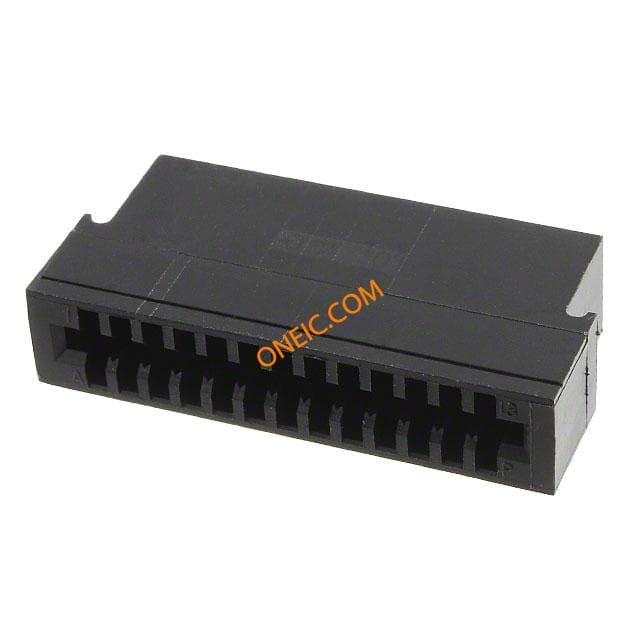

3-583717-3
te connectivity / amp
Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN HOUSING 13DUAL POS .100 Standard Card Edge Connectors TW-LF CRP HSG 13 POS 100C/L TW-LF CRP HSG 13 POS 100C/L TW-LF CRP HSG 13 POS 100C/L Search Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 26POS
583873-5
te connectivity / amp
Conn Housing RCP 30 POS 3.18mm Crimp ST DIN 41612 Connectors HOUSING CSTL 125 C/L 15 POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG .125 15DL POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing15 Dual Positions3.18 mm CenterlineWithout Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors HOUSING CSTL 125 C/L 15 POS
1-583859-3
te connectivity / amp
Conn Housing RCP 12 POS 3.96mm Crimp ST Cable Mount CONN CARDEDGE HSNG 6POS DL .156 Standard Card Edge Connectors HOUSING CSTL 156 C/L 6 POS HOUSING CSTL 156 C/L 6 POS HOUSING CSTL 156 C/L 6 POS Search Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors
583718-1
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) TW-LEAF CRP HSG 20 POS 100 C/L Standard Card Edge Connectors 100 VRT 010DP Conn Housing RCP 20 POS 2.54mm Crimp ST Product Highlights:Housing10 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CARD EDGE CONNECTOR, 20WAY TW-LEAF CRP HSG 10 POS 100 C/L
583859-3
te connectivity / amp
Conn Housing RCP 44 POS 3.96mm Crimp ST Cable Mount Standard Card Edge Connectors 22P HOUSING CSTL 156 .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG 22POS DL .156 Conn Housing RCP 44 POS 3.96mm Crimp ST Cable Mount Product Highlights:Housing22 Dual Positions3.96 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors HOUSING CSTL 156 C/L 22 POS

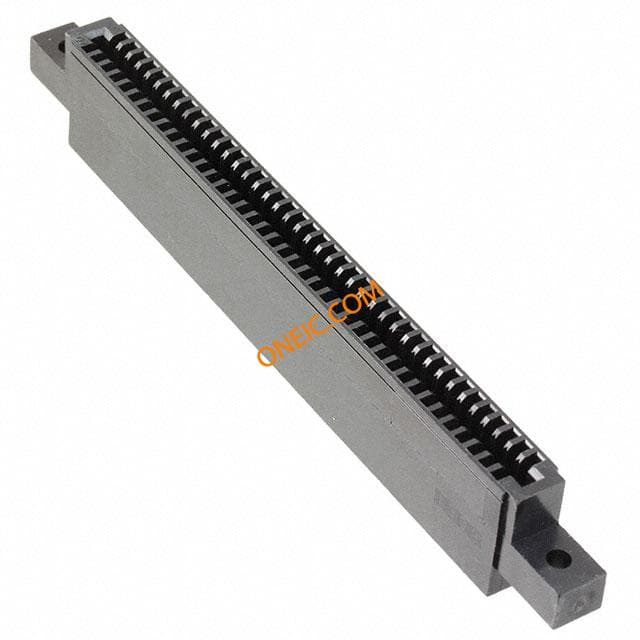

1-583718-5
te connectivity / amp
Conn Housing RCP 80 POS 2.54mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN HOUSING 20POS DUAL .100 BLK DIN 41612 Connectors TW LEAF CRP HSG 40P .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing40 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 80POS TW LEAF CRP HSG. 40-POS.
583861-1
te connectivity / amp
Conn Housing RCP 60 POS 2.54mm Crimp ST Panel Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) TW-LF CRP HSG 30 POS Conn Housing RCP 60 POS 2.54mm Crimp ST Panel Mount Product Highlights:Housing30 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors
1-583718-7
te connectivity / amp
Conn Housing RCP 100 POS 2.54mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) HOUS CARD EDGE .100CL 100POS DL Standard Card Edge Connectors TW-LEAF CRP HSG 50P 100 C/L .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing50 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors TW-LEAFCRPHSG50POS100C/L TW-LEAF CRP HSG 50 POS 100 C/L
1-583718-3
te connectivity / amp
Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount TW-LEAF CRP HSG 60 POS 100 C/L Standard Card Edge Connectors TW-LEAF CRP HSG 30 POS 100 C/L .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing30 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors TW-LEAF CRP HSG 30 POS 100 C/L

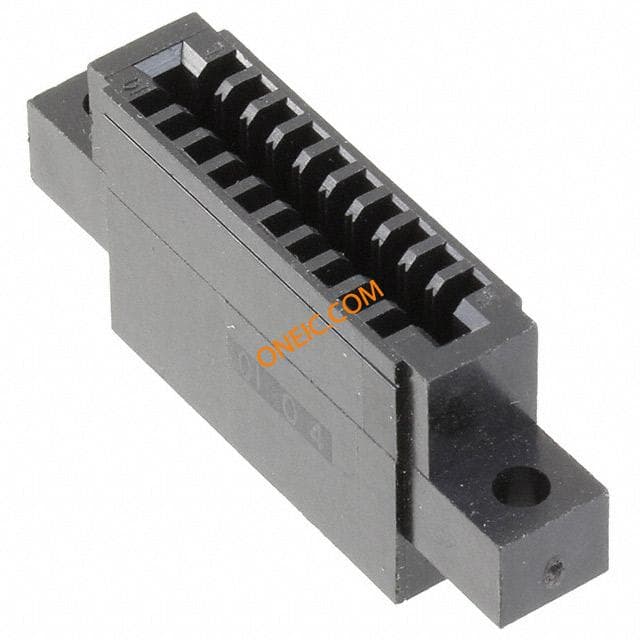

583861-7
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Panel Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) 10 POS. TWIN LEAF 100 C/L Standard Card Edge Connectors 10 POS TWIN LEAF CON Conn Housing RCP 20 POS 2.54mm Crimp ST Panel Mount Product Highlights:Housing10 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 20POS
583861-9
TE Connectivity / AMP
DIN 41612 Connectors TW-LEAF CAP HSG 15P .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG .100 15DL POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing15 Dual Positions2.54 mm CenterlineWith Mounting Ears
1-583717-1
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN HOUSING 25 DUAL POS W/O EAR Standard Card Edge Connectors HSG 25 POS 100 C/L Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing25 Dual Positions2.54 mm CenterlineWithout Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 50POS TW-LEAF CRP HSG 25 POS 100 C/L
1-583864-3
te connectivity / amp
Conn Housing RCP 28 POS 3.18mm Crimp ST .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) HOUSING CSTL 125 C/L 28 POS Standard Card Edge Connectors HOUSING CSTL 125 C/L 28 POS .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing28 Dual Positions3.18 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors

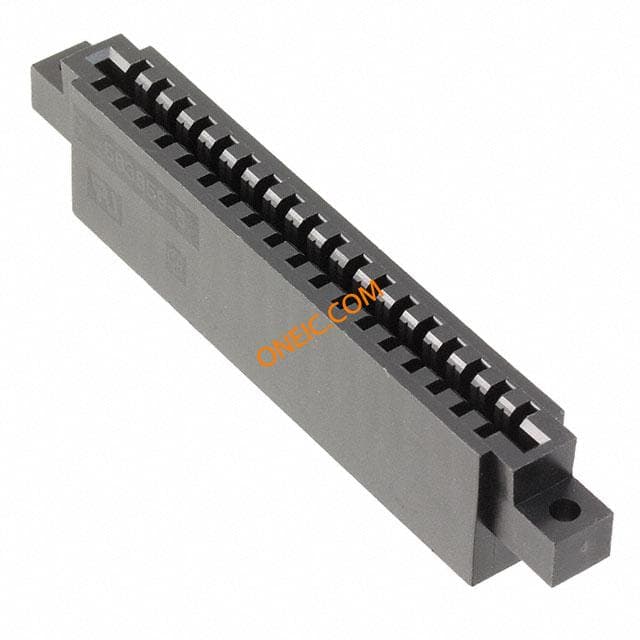

583859-5
