点击放大查看

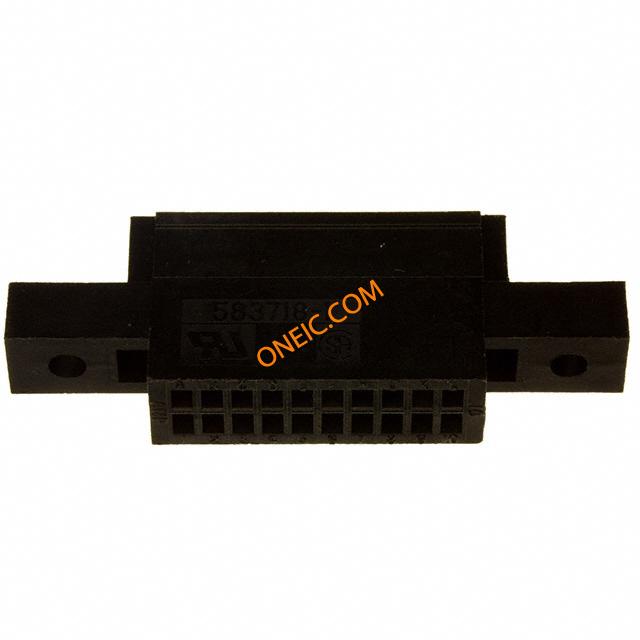

583718-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 20 POS 2.54mm Crimp ST .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) TW-LEAF CRP HSG 20 POS 100 C/L Standard Card Edge Connectors 100 VRT 010DP Conn Housing RCP 20 POS 2.54mm Crimp ST Product Highlights:Housing10 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CARD EDGE CONNECTOR, 20WAY TW-LEAF CRP HSG 10 POS 100 C/L |
| 分类 |
商业参数
| 其他名称 | 5837181 | 产品类别 | Standard Card Edge Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 导线线规 | 16-28 AWG | 外壳颜色 | Black |
| 安装类型 | Straight | 卡厚度 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) |
| 连接器类型 | :Card Edge | 接触镀层 | :- |
| 法兰特征 | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | Polyester GF |
| 绝缘颜色 | :Black | 安装特性 | With |
| 触点数 | 20 | 接触件端接 | :- |
| 位数 | 20 | 绝缘材料 - 材质 | Polyester Thermoplastic, Glass Filled |
| 中心触点材料 | 2.54 [0.100] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 583718 |
| 产品特性 | Flange | 卡类型 | Non Specified - Dual Edge |
| 产品子类型 | Housing | 转换前位置数 | 10 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
