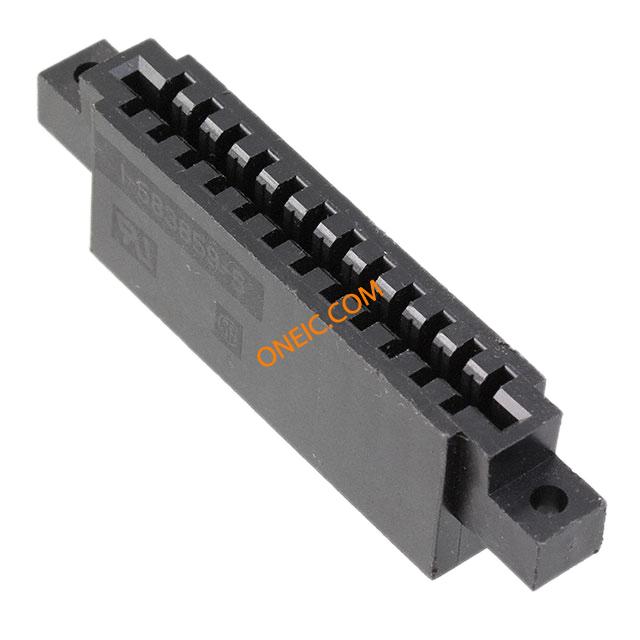

1-583859-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 24 POS 3.96mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN CARDEDGE HSNG 12POS DL .156 Standard Card Edge Connectors BLADE SLUG 12 POS 1-583859-5 Conn Housing RCP 24 POS 3.96mm Crimp ST Cable Mount Product Highlights:Housing12 Dual Positions3.96 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 24POS HOUSING CSTL 156 C/L 12 POS |
| 分类 |
商业参数
| 零件号别名 | 1583859-5 | 产品类别 | Standard Card Edge Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 压接 | 最大额定电流 | 5 |
机械参数
| 颜色 | Black | 间距 | 3.96 mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 卡厚度 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 连接器类型 | Non Specified - Dual Edge |
| 法兰特征 | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | 排数 | 2 |
| 高度（英寸） | .75 | 壳体材料 | Polyester GF |
| 总长度 | 2.721 | 安装特性 | With |
| 包装数量 | 1 | 端接样式 | Crimp |
| 触点数 | 24 | 位数 | 24 |
| 绝缘材料 - 材质 | Polyester Thermoplastic, Glass Filled | 安装孔直径 | 带有 |
| 中心触点材料 | 3.96 [0.156] | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Twin Leaf |
| 产品特性 | Flange | 卡类型 | Non Specified - Dual Edge |
| 主要用途 | Flange | 产品子类型 | Housing |
| 输出配置 | Panel Mount | 转换前位置数 | 12 |
