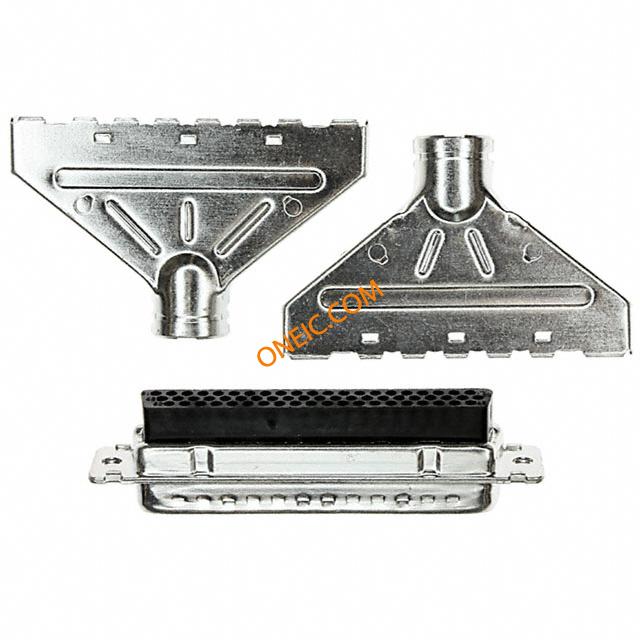

5748471-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 62 POS ST D-Sub High Density Connectors DSUB C62P CRIMP KIT Standard Cable Connectors CONN D-SUB PLUG 62POS W/O CONT Conn Housing PL 62 POS 2.41mm Crimp ST Cable Mount Bulk Conn Housing PL 62 POS 2.41mm Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HDP22 Series 62 Position Crimp Contact Shielded Hardware Plug Metal Kit D-Sub KIT,PLUG,62P,HDP-22,SHLD HDWRE |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.41 mm |
| 高度 | 12.93 mm | 外形尺寸(长x宽) | 4 |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 导线线规 | 22-28 AWG | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 端子尺寸 | 22 | 连接器类型 | Plug for Male Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 3 |
| 连接器样式 | D-Sub, High Density | 屏蔽材料 | 钢 |
| 壳体材料 | Nylon | 总长度 | 69.7 mm |
| 包装数量 | 1 | 接地凹痕 | With |
| 触点数 | 62 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 62 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 触点材料 - 镀层 | 尼龙 | 外壳尺寸，连接器布局 | 4 (DC, C) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | 标准 | 连接器性别 | PL |
| 产品特性 | Grounding Indents, Shielded | 产品子类型 | 连接器 |
| 其他规格 | 8.59 – 14.28 mm [ .338 – .562 in ] | ||
环境参数
| 工作温度 | -55C to 105C | ||
