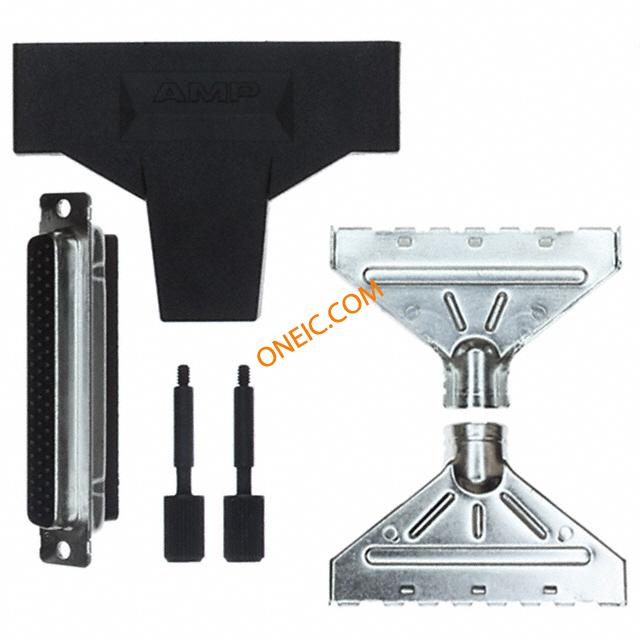

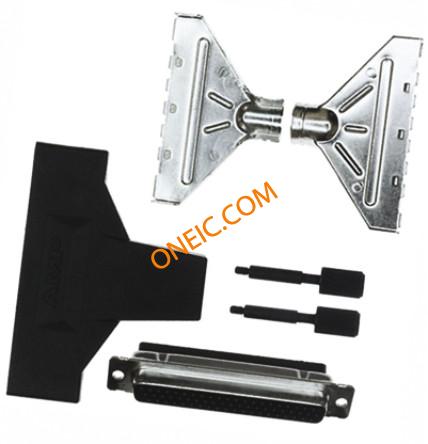

5748642-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 62 POS Crimp ST Cable Mount 62Terminal 1Port Bulk D-Sub Standard Connectors DSUB C62S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 62POS W/O CONT AMPLIMITE HDP22 Receptacle+Enclosure 62P D-Sub Receptacle; Steel; Female; 4; Tin D-Sub Standard Connectors HPD-22 62P 22C D-SUB RCPT CRIMP KIT Conn Housing RCP 62 POS Crimp ST Bulk Conn Housing RCP 62 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;62Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit HDP22 Series 62 Position Crimp Contact Shielded Hardware Socket Metal Kit D-Sub KIT,RCPT,62P,HDP-22,SHLD ENCLS |
| 分类 |
商业参数
| 其他名称 | A31538 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 连接器阻抗 | 锁紧螺钉, 锁紧螺钉 | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 高度 | 18.54 mm |
| 外形尺寸(长x宽) | 4 | 包装方式 | Bulk |
| 屏蔽 | 是 | 外壳尺寸 | 4 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳表面处理 | 锡 |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 端子尺寸 | 22 | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Cable Side (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 插入件材料 | Thermoplastic | 屏蔽材料 | Steel |
| 壳体材料 | PVC | 总长度 | 72.77 mm |
| 包装数量 | 1 | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | Solder |
| 触点数 | 62 POS | 介电材料 | Thermoplastic |
| 位数 | 62 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 触点材料 - 镀层 | 热塑性 | 护套（绝缘）材料 | Zinc Alloy |
| 外壳尺寸，连接器布局 | 4 (DC, C) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | D-Subminiature |
| 等级 | 标准 | 连接器性别 | SKT |
| 系列 | HDP-22 | 产品特性 | Backshell, Grounding Indents, Shielded |
| 制造商全称 | HDP-22 | 产品子类型 | 连接器 |
| 其他规格 | 8.59 – 14.28 mm [ .338 – .562 in ] | ||
环境参数
| 工作温度 | -55C to 105C | ||
