点击放大查看

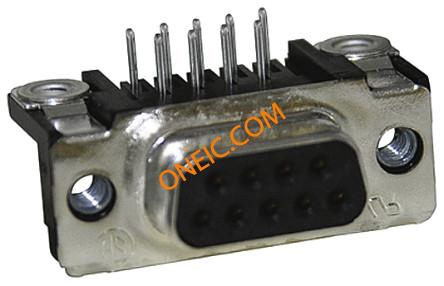

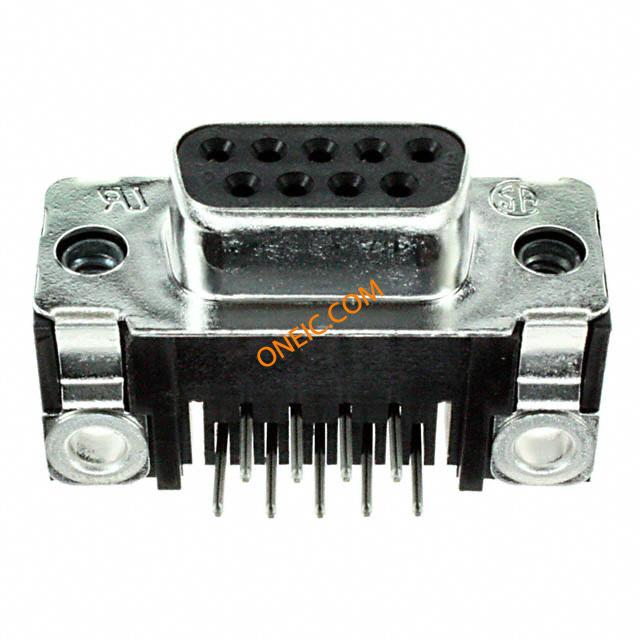

5745781-3
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 9P Standard Board Mount Connectors CONN D-SUB RCPT R/A 9POS GOLD AMPLIMITE HD-20 Socket Right Angle 9P Receptacle; D-Subminiature; Receptacle; 9; Front Metal; Phosphor Bronze Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22,
ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;9Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 09 MSFL RCPT RA 318 (IN,FM) |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 螺纹插针，4-40 UNC, 螺纹插针，4-40 UNC | 最大额定电流 | 6A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Black | 深度 | 18.79 mm |
| 间距 | 2.74 mm | 高度 | 12.54 mm |
| 密封型 | No | 外形尺寸(长x宽) | 1 |
| 包装方式 | Tray | 引脚样式 | Round |
| 外壳尺寸 | 1 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .108 |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 接地类型 | With | 尖端材料（笔尖） | Tin |
| 安装样式 | Through Hole | 排数 | 2 |
| 壳体镀层 | 锡 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | Zinc | 锁定特性 | Threaded Insert, 4-40 UNC |
| 磁芯材质 | 黄铜 | 材料表面处理 | Clear Chromate |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 30.81 mm |
| 安装特性 | 安装孔 | 包装数量 | 130 |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 外形尺寸 长x宽x高 | 8.08 [.318] |
| 端接样式 | Solder | 连接器颜色 | None |
| 外径 | .66 mm [ .026 in ] | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | Front Metal Shell |
| 安装孔直径 | 3.18 [.125] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | Flash |
| 触点材料 - 镀层 | 锌 | 外壳与棱镜材料 | 否 |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 产品特性 | Ground Strap | 可密封 | 否 |
| 预装 | 是 | 产品子类型 | 连接器 |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.58 mm [ .062 in ] |
