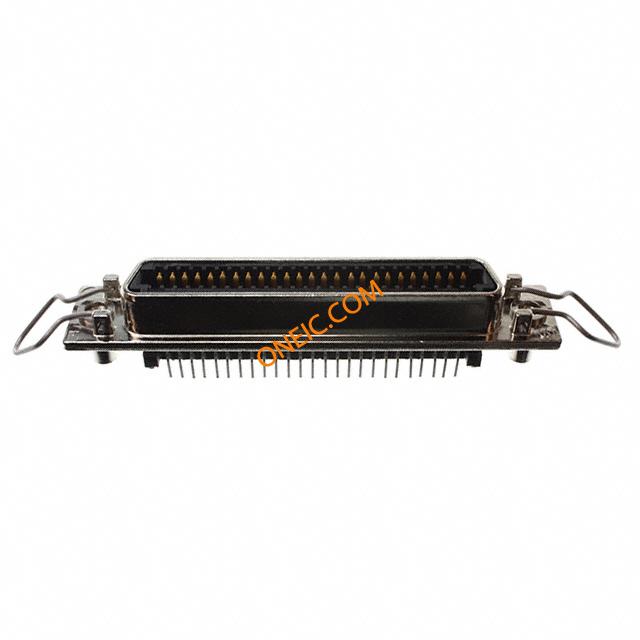

5554216-3

点击放大查看

5554216-3

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Panel Mount 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS RECEPT VERT I/O Connectors RCPT 50 POS VERT Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Panel Mount 50 Terminal 1 Port Product Highlights:ConnectorHousing Gender = Receptacle2.16 mm CenterlineCHAMP Product Line50 PositionsSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics TE Connectivity 5554216 系列 50 路 2.16mm节距 直 印刷电路板安装 母 SCSI 连接器, 焊接, 把手锁 RCPT ASSY,50 POS,VERT MTG,SHLD
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间42 Days子类别Connector Interface
产品类别I/O Connectors标准包装数量Trays
工厂包装数量45

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗释放锁

机械参数

颜色Black深度0.62in
间距2.16 mm宽度0.72in
长度3.305in包装方式Tray
屏蔽是壳体颜色黑色
方向Standard屏蔽类型With
端接方式Solder第二连接器With
安装类型Panel Mount外壳镀层Nickel
连接器类型Receptacle接触镀层Tin
法兰特征Insert, Threaded (4-40)安装样式Vertical
排数2连接器样式Outer Shroud Contacts
插入件材料磷青铜锁定特性Bail Lock
外形（宽 x 高）Standard屏蔽材料Die Cast Metal
触头材料Copper Alloy壳体材料Thermoplastic
安装特性板锁包装数量45
面板安装类型Rear Mount端接排数焊接
端接样式Solder Pin触点数50
位数50端子柱长度3.43 [0.135]
接触镀层厚度30µin (0.76µm)

产品信息

类型IEEE 488连接器性别RCP
系列5554216产品特性Bail Lock, Shielded
方向标准制造商全称AMP
预装是产品子类型连接器
其他规格No适用产品/相关产品554216-3
