554953-1

点击放大查看

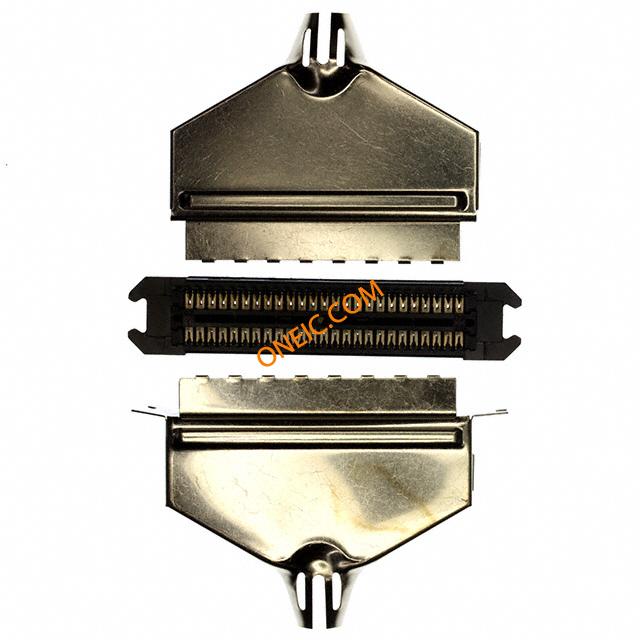

554953-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 PL 50 POS 2.16mm IDT ST Cable Mount 50 Terminal 1 Port Bag 2.16 [.085] IDC Connectors CONN CHAMP 50 POS PLUG SHIELDED I/O Connectors PLUG KIT 50 POSN BAI Conn IEEE 488 PL 50 POS 2.16mm IDT ST Cable Mount 50 Terminal 1 Port Bag Product Highlights:Connector KitNumber of Positions = 50Standard ProfilePlugShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity 554953 系列 50 路 直 电缆安装 公 SCSI 连接器, IDC, 无闩锁 PLUG KIT,50 POSN,BAIL LK, SHLD
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

产品Micro Ribbon Connectors交货时间98 Days
子类别Connector Interface产品类别Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗释放锁

机械参数

颜色Black深度11.43mm
间距2.16 mm宽度50.04mm
长度74.17mm包装方式Bag
屏蔽是壳体颜色黑色
出线方向180°电缆类型7 Strand
铜缆类型E方向直
屏蔽类型Yes端接方式IDC
外壳表面处理Bright第二连接器With
安装类型Cable Mount外壳镀层Bright Nickel
电缆直径15.88连接器类型Plug
接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel安装样式Cable
排数2连接器样式Center Strip Contacts
插入件材料铜合金锁定特性Bail Lock
外形（宽 x 高）Standard屏蔽材料Carbon Steel
触头材料Copper Alloy壳体材料Thermoplastic
包装数量Individual Kit面板安装类型Without
端接排数IDC端接样式IDC
线规 - 端部27, 28触点数50
绝缘直径1.14位数50
外壳材料及表面处理黄色接触镀层厚度30µin (0.76µm)
线规或范围 - AWG26 – 24线规或范围 - mm²0.09² [28], 0.10² [27], 0.14² [26]
线缆外径（最大）8.89 – 15.88 mm [ .35 – .625 in ]电缆外径（最小）8.89 – 15.88 [0.350 – 0.625]

产品信息

类型IEEE 488连接器性别PL
系列554953产品特性Bail Lock, Shielded
套件类型Connector Kit制造商全称AMP
产品子类型Connector Kit
