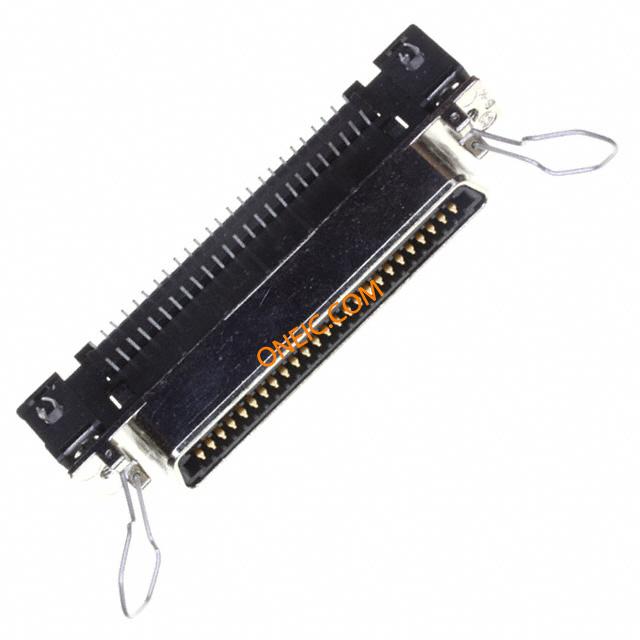

555149-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50Terminal 1Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS RECEPT RT/ANG Headers & Wire Housings IBM COMPATIBLE BAIL LOCK 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationLow ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics 50 Position Dual Row Right Angle Receptacle Through Hole PCB Connector |
| 分类 |
商业参数
| 交货时间 | 365 Days | 其他名称 | A15005 |
| 子类别 | Connector Interface | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 30 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 表面处理 | Passivated | 镀层 | Tin-Lead |
| 材料（通用） | Stainless Steel | 厚度 | 1.57 [0.062] |
| 螺钉尺寸 | 4-40 | 方向 | Standard |
| 屏蔽类型 | Yes | 端接方式 | Solder |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Bright Nickel over Copper | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | Right Angle | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 锁定特性 | Bail Lock |
| 磁芯材质 | Polyester | 外形（宽 x 高） | Low |
| 屏蔽材料 | Die Cast Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 框架材料 | Polyester |
| 包装数量 | 270 | 面板安装类型 | Rear Mount |
| 触点数 | 50 POS | 位数 | 50 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | Compatible with IBM PC AT and PC XT.; SCSI- Applicable; Maximum PC Board Thickn | 类型 | IEEE 488 |
| 连接器性别 | RCP | 产品特性 | Bail Lock, Shielded |
| 主要用途 | Bail Lock, Shielded | 制造商全称 | AMP |
| 其他规格 | Yes | 适用产品/相关产品 | 5555149-1 |
环境参数
| 工作温度 | - 40 C to + 105 C | ||
