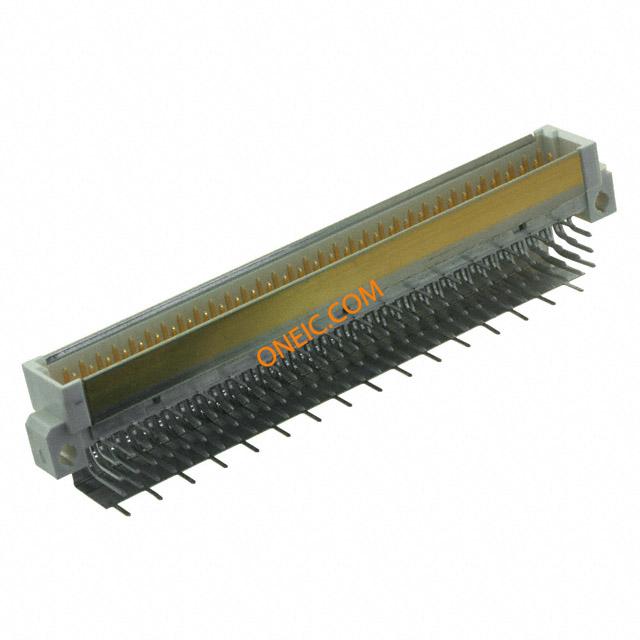

5536146-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG RTANG 96 POS DIN DIN 41612 Connectors ASSY PIN ENH.TYPE C EUROCARD L-FREE 5 RO Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 96 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type B Connector ASSY,PIN,ENH.TYPE C,EUROCARD,L-FREE,5 RO |
| 分类 |
商业参数
| 其他名称 | 55361465 | 标准包装数量 | Bulk |
| 工厂包装数量 | 105 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | ||
机械参数
| 尺寸 | Standard | 颜色 | Gray |
| 间距 | 2.54 mm | 涂层 | Without |
| 镀层 | Lower, Upper | 包装方式 | Bulk |
| 屏蔽 | 是 | 端接方式 | Solder |
| 触点尺寸 | 0.64 [.025] Sq. | 触头类型 | Solder Post |
| 固定类型 | 否 | 引脚直径 | II |
| 安装类型 | Through Hole | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Tin-Lead | 安装样式 | 不带 |
| 排数 | 3 | 端子样式 | .64 x .64 mm [ .025 x .025 in ] |
| 插入件材料 | 铜合金 | 屏蔽材料 | Copper Alloy |
| 触头材料 | Copper Alloy | 壳体材料 | Polymer |
| 安装特性 | With | 面板安装类型 | 通孔 - 焊接 |
| 尺寸/外形 | 标准 | 先合后断 | No |
| 端接样式 | 插针 | 触点数 | 96 |
| 位数 | 96 | 触头长度-柱 | 信号（数据） |
| 绝缘材料 - 材质 | Polymer Thermoplastic, Glass Filled | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 端子柱长度 | 3.30 [0.130] |
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | C | 连接器性别 | Plug |
| 产品特性 | Ground Plate | 产品子类型 | Enhanced Type C Connectors |
| 总线连接 | VME 64 | 连接类型 | Printed Circuit Board |
| 工具类型/特性 | No | 加载位置数 | All |
环境参数
| 温度 | No | 级别、等级 | 2 |
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
650992-5
te connectivity / amp
