点击放大查看

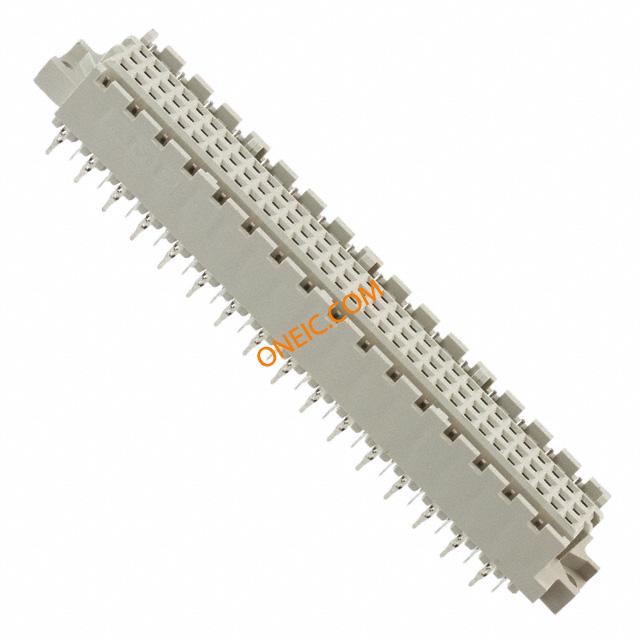

650992-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 RCP 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 096 ENHNCD EURO RCPT AP ASSY Eurocard Type C 096 ENHNCD EURO RECEPT AP ASSY Conn DIN 41612 RCP 96 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:Enhanced Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 OPTOCOUPLERS |
| 分类 |
商业参数
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS/Not ELV Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 感应角度 | Without | 最大额定电流 | 1.5 A |
机械参数
| 尺寸 | Standard | 颜色 | Gray |
| 间距 | 2.54 mm | 重量 | 0 |
| 涂层 | Without | 包装方式 | Bulk |
| 端接方式 | Press Fit | 触点尺寸 | 0.64 [.025] Sq. |
| 触头类型 | Compliant Post | 尾部长度 | 4.83 mm |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 排数 | 3 |
| 电路板厚度 | 1.57 [0.062] | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic Glass Reinforced | 安装特性 | With |
| 先合后断 | No | 端接样式 | Press Fit |
| 触点数 | 96 | 位数 | 96 |
| 绝缘材料 - 材质 | Polyester, Glass Filled | 端子柱长度 | 4.83 [0.190] |
产品信息
| 备注 | Contact Finish: DIN 41612 Class 2 In Contact Area.Tin-Lead On Posts. | 类型 | DIN 41612 |
| 等级 | II | 样式 | C |
| 连接器性别 | Receptacle | 产品子类型 | Enhanced Type C Connectors |
| 总线连接 | VME 64 | 连接类型 | Printed Circuit Board |
| 工具类型/特性 | Yes | 有铅工艺兼容 | :No |
| 加载位置数 | All | ||
环境参数
| 温度 | No | 级别、等级 | 2 |
| 测试温度 | :No | 工作温度 | -55°C ~ 125°C |
