5536155-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 F 128 POS 2.54mm Solder ST Thru-Hole Eurocard Type C RECPT ENH C EUROCARD 5 ROW Standard Card Edge Connectors ASSY,RECPT,ENH.C EUROCARD,L-FREE,5ROW Eurocard Type C Product Highlights:Enhanced Type C ConnectorsReceptacleNumber of Positions = 128Rows Loaded = A, B, C, X, YTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,RECPT,ENH."C",EUROCARD,L- |
| 分类 |
商业参数
| 标准包装规格 | 20 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | 感应角度 | Without |
机械参数
| 尺寸 | Standard | 颜色 | Gray |
| 间距 | 2.54 mm | 涂层 | Without |
| 包装方式 | Bulk | 屏蔽 | 否 |
| 端接方式 | Solder | 触点尺寸 | 0.64 [.025] Sq. |
| 触头类型 | Solder Post | 固定类型 | 否 |
| 引脚直径 | II | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin |
| 安装样式 | 带有 | 排数 | 5 |
| 端子样式 | .64 x .64 mm [ .025 x .025 in ] | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Polymer |
| 安装特性 | With | 面板安装类型 | 通孔 - 焊接 |
| 尺寸/外形 | 标准 | 先合后断 | No |
| 连接器间距 | 2.54 | 端接样式 | 插座 |
| 触点数 | 128 | 位数 | 128 |
| 触头长度-柱 | 信号（数据） | 绝缘材料 - 材质 | Polymer Thermoplastic, Glass Filled |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 端子柱长度 | 4.57 [0.180] | 第一连接器安装特征 | 否 |
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | C | 连接器性别 | Receptacle |
| 产品特性 | Board Lock | 产品子类型 | Enhanced Type C Connectors |
| 总线连接 | VME 64 | 连接类型 | Printed Circuit Board |
| 工具类型/特性 | No | 加载位置数 | All |
环境参数
| 温度 | No | 级别、等级 | 2 |
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
5536146-5
te connectivity / amp

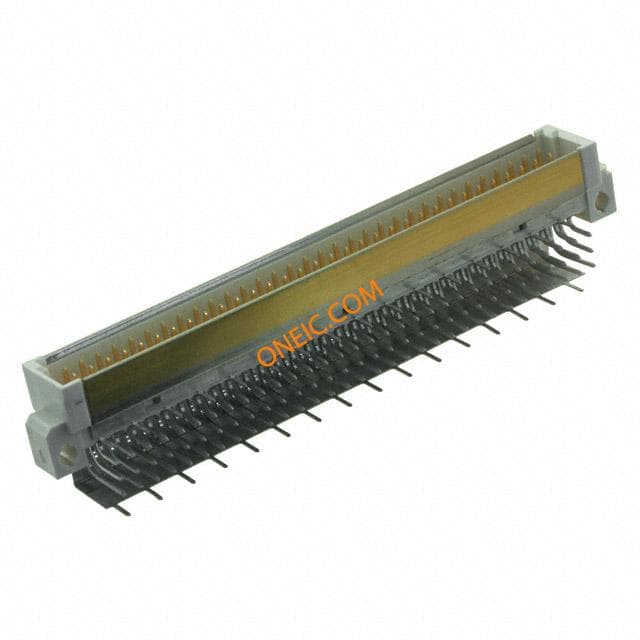

Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG RTANG 96 POS DIN DIN 41612 Connectors ASSY PIN ENH.TYPE C EUROCARD L-FREE 5 RO Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 96 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type B Connector ASSY,PIN,ENH.TYPE C,EUROCARD,L-FREE,5 RO
536148-5
te connectivity / amp
Conn DIN 41612 M 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 096 ENHNCD EURO PIN ASY W/BDLK Eurocard Type C CONN PLUG R/A 96POS EURO TYPE C Eurocard Type C Product Highlights:ConnectorPlugType = Enhanced Type C96 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096 ENHNCD EURO PIN ASY W/BDLK
215605-4
te connectivity / amp
Conn DIN 41612 M 96 POS 2.54mm Press Fit RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB Plug pcb 90deg 96w 3row 2.54mm Eurocard DIN 41612 Connectors 96P R/A DIN PLUG Conn DIN 41612 M 96 POS 2.54mm Press Fit RA Thru-Hole Product Highlights:Type C ConnectorsPlug96 PositionsRows Loaded = A, B, CTerminate To Printed Circuit Board PLUGPCBVERT96W3ROW 96 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 按式端接

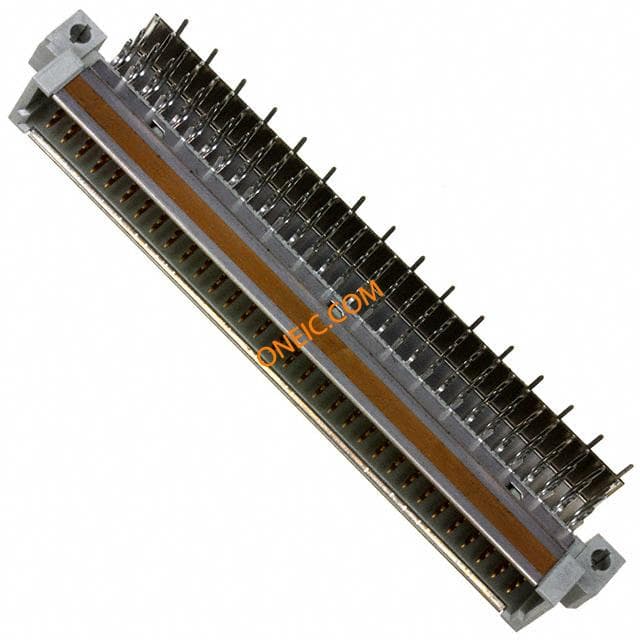

536146-5
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG RTANG 96 POS DIN DIN 41612 Connectors PLUG R/A 96P DIN TYPE C 096 ENHNCD EURO PIN ASSY

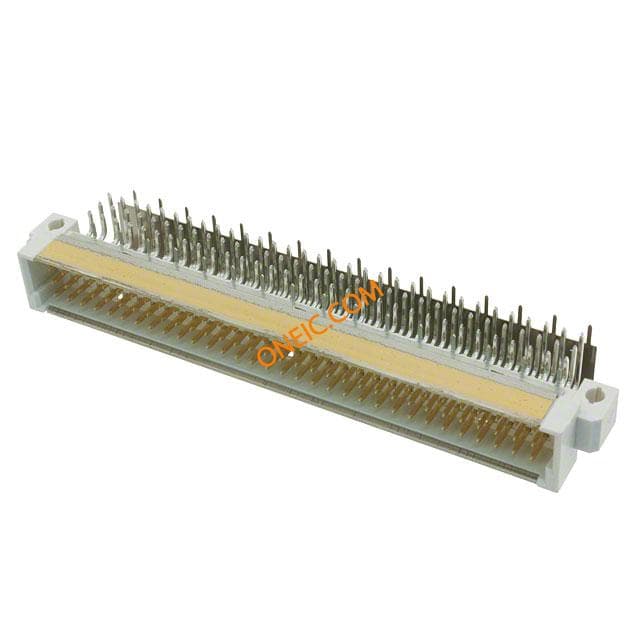

650987-5
