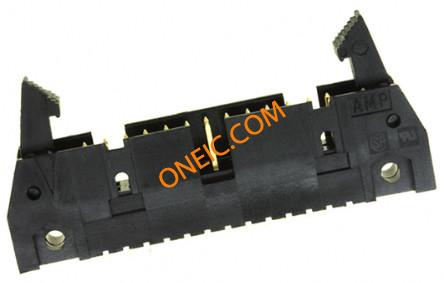

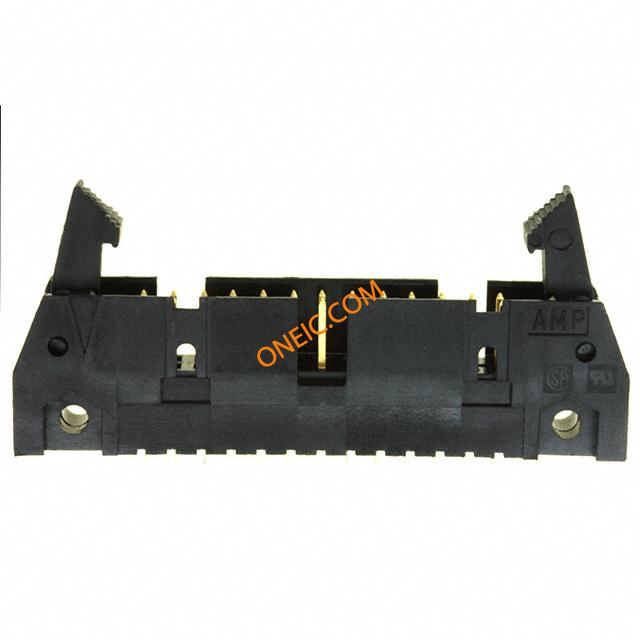

5499910-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH Headers & Wire Housings 26 POS HDR 15AU W/SHORT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 26P VERT SHT LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 开关功能 | Ejection |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 长度 | 2.54in | 重量 | 0 |
| 包装方式 | Bulk | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center, Dual Polarizing Bar, Military | 第二连接器 | With |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Universal Ejection Pin Headers |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 紧固类型 | Latch, Short/Eject Hooks |
| 排数 | 2 | 封装形式 | 4-Sided |
| 电路板厚度 | 1.57 [0.062] | 锁定特性 | Latch |
| 外形（宽 x 高） | Standard | 壳体材料 | Thermoplastic |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 26 |
| 接触件端接 | :Through Hole Vertical | 位数 | 26 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 [0.110] |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 有铅工艺兼容 | :Yes | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | ||
文档与媒体
