1658620-6

点击放大查看

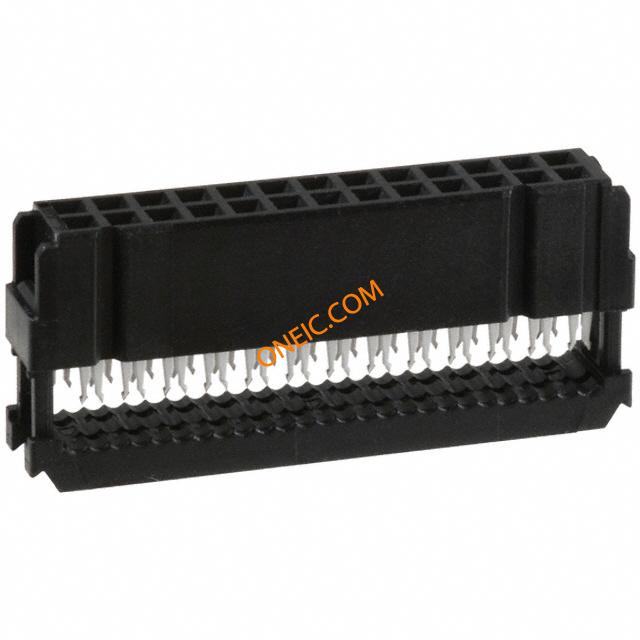

1658620-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS 15 GOLD CONNECTOR, RECEPTACLE, NOVA, AMP-LATCH Headers & Wire Housings MLTRY PLRZD RECPT 26 NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,26POSITION,WITHMATINGPOLARIZATION 26 NOVO MIL 15DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量72

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250供电电压250
接触电阻15 mohm输入电阻5000
连接器阻抗刺破式压接 (IDC)最大额定电流1A
最小供电电压250VAC连接器类型 - 电压输入音叉

机械参数

颜色Black深度6.09 mm
间距2.54 mm宽度6.1 mm [ .2402 in ]
高度15.97 mm长度1.48in
底座类型不带包装方式Tube
导线类型Ribbon Cable壳体颜色黑色
出线方向Without电缆类型Ribbon Cable
导线线规26-28 AWG排间距0.100" (2.54mm)
端接方式IDT触点形式Female Socket
触头类型Female Socket引脚间距0.100" (2.54mm)
极化Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel法兰特征否
安装样式Cable排数2
驱动力不带插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度37.59 mm安装特性Without
包装数量60面板安装类型通孔 - 焊接
尺寸/外形.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规电缆端接方式IDC
端接样式IDC第一连接器类型插针接头
第一触头极性Socket (Female)配接方向With
触点数26绝缘材料 - 类型.787 – .94 mm [ .031 – .037 in ]
位数26触头长度-柱信号（数据）
安装孔直径带有中心触点材料2.54 x 2.54 [.100 x .100]
接触件表面处理 - 配合锡接触镀层厚度15µin (0.38µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别F系列AMP-LATCH, NOVO
产品特性Feed Through极性带有
主要用途Feed Through产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes
DigiKey可编程不带输出配置Free Hanging (In-Line)
应用细节Wire-to-Board

环境参数

工作温度+105°C

文档与媒体

在线文档
1658620-6?RQPN=1658620-6

相关型号

5102153-6

5102153-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Header; Universal Ejection Pin Header Headers & Wire Housings 26 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile26 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM Header;UniversalEjectionPinHeader;26;0.100x0.100in.;Vertical(PCB) A/L UNIV HDR 26P VERT

¥9.0600
详情
5103308-6

5103308-6

te connectivity / amp

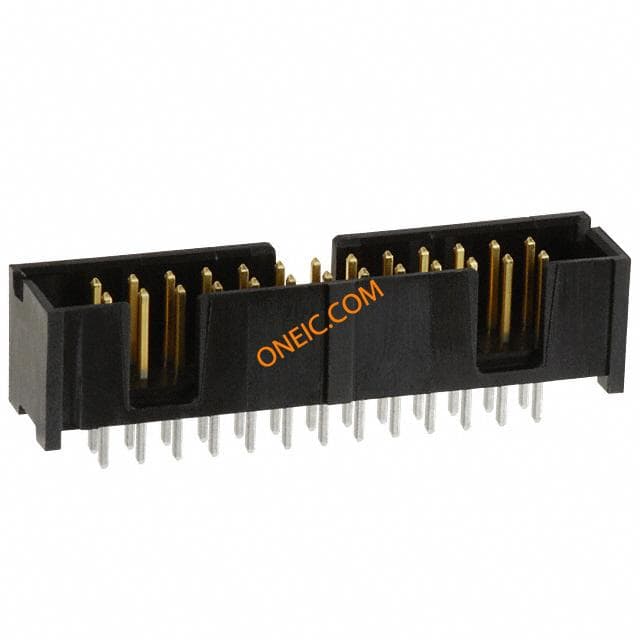

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 26POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X013P VERT LOW PROFILE Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, 2.54MM, 26WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;26;0.100x0.100in.;1A TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 26P VERT BLACK

¥6.0935
详情
5102160-6

5102160-6

te connectivity / amp

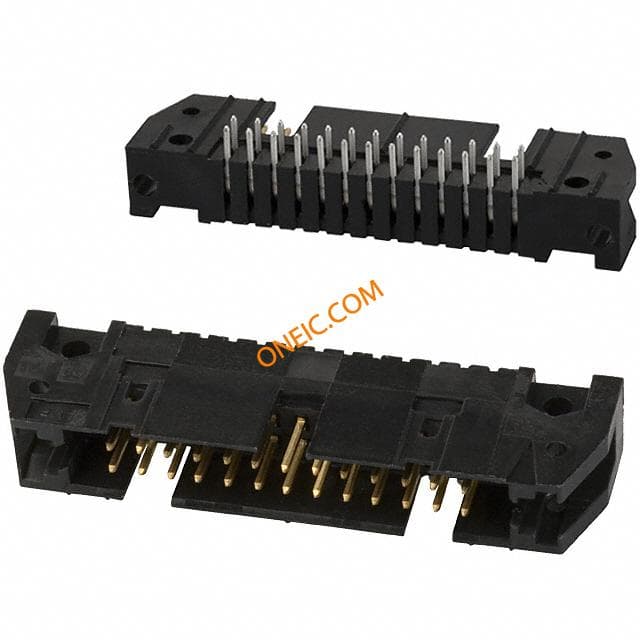

Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 26POS .100 GOLD Header; Universal Ejection Pin Header Headers & Wire Housings 26 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;26;0.100x0.100in.;RightAngle(PCB) Pin header DIN 41651 26P, 5102160-6, TE Connectivity A/L UNIV HDR 26P RA

¥10.9480
详情
1761609-9

1761609-9

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 26POS Headers & Wire Housings 100X100 HDR 2X013P R/A LOW PROFILE Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM IDC LOW PRO HDR 26P RA SHT LAT

¥27.1800
详情
2-1761605-9

2-1761605-9

te connectivity / amp

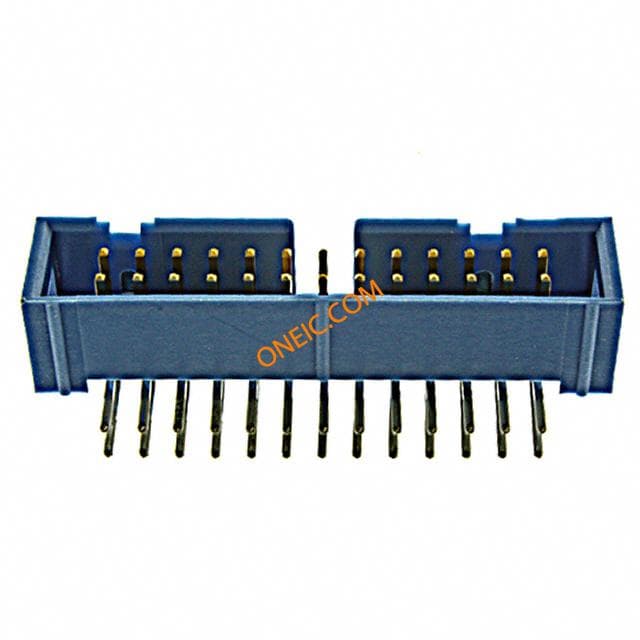

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 26POS 30AU Headers & Wire Housings PIN HEADER 26 POS R/A LOW PROFILE Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 26WAY IDCHDRS7BOXNOEJ,IDCLOWPROHDR26PRABLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 26P RA BLUE

¥18.1200
详情
5499922-6

5499922-6

te connectivity / amp

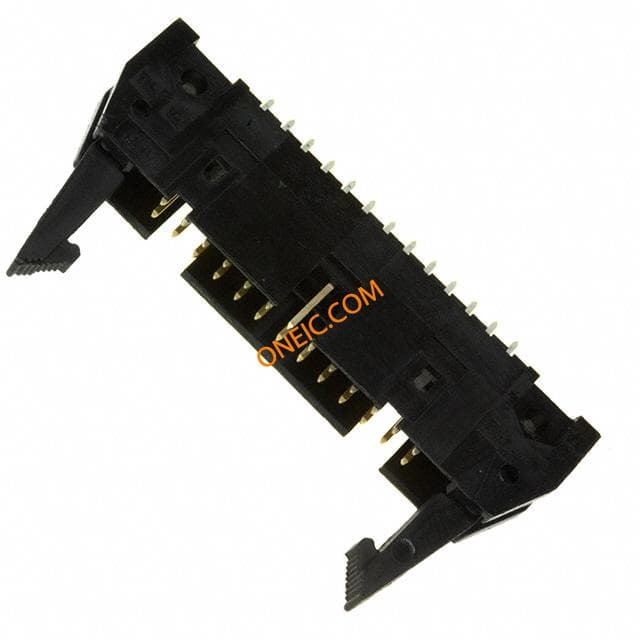

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 15AU TE Connectivity 5499922 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 26 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 26路 2.54mm节距 (2排) 直 PCB 针座 , 焊接端接, 1A, 通孔 A/L UNIV HDR 26P VERT LG LAT

¥11.5600
详情
2-1761603-9

2-1761603-9

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 26POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 26P VERT BLUE Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,PIN,IDC,AMP-LATCH,26POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:26; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 26P VERT BLUE

¥18.1200
详情
5499206-6

5499206-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD AMPLATCH Pin Header Vertical Black 26 P Headers & Wire Housings 26 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 26Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 26P VERT LG LAT

¥17.0000
详情
5499910-6

5499910-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH Headers & Wire Housings 26 POS HDR 15AU W/SHORT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 26P VERT SHT LAT

¥13.6680
详情
5102155-6

5102155-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X013P VERT Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT

¥9.1800
详情
5102156-6

5102156-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X013P VERT Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT

¥8.7040
详情
5103309-6

5103309-6

te connectivity / amp

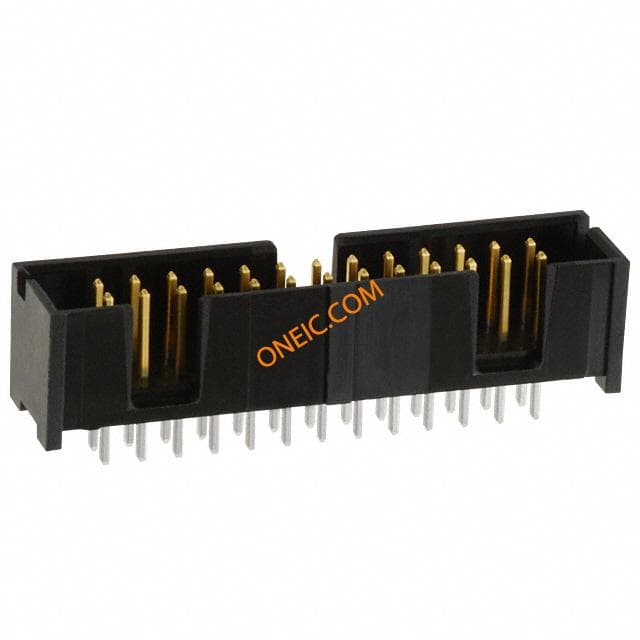

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 26POS GOLD Headers & Wire Housings HDR VERT DOUBLE 26P low profile Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM Header;Pin;Vertical;CopperAlloy;Thermoplastic;26;0.100x0.100in.;1A Pin header DIN 41651 26P, 5103309-6, TE Connectivity A/L LOW PRO HDR 26P VERT BLACK

¥9.0600
详情
5103311-6

5103311-6

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole CONN HEADER LOPRO R/A 26POS GOLD Headers & Wire Housings HDR R.A. DOUBLE 26P Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 26P RA BLACK

¥10.5400
详情
5102321-6

5102321-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X013P VERT EJE Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 26P VERT LG LAT

¥15.7760
详情
5102154-6

5102154-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 26 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:With ContactsHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM Header;UniversalEjectionPinHeader;26;0.100x0.100in.;Vertical(PCB) Pin header DIN 41651 26P, 5102154-6, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT

¥9.0600
详情
2-1761679-9

2-1761679-9

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO 26PS VERT GOLD Headers & Wire Housings IDC LOW PRO HDR 26P VERT BLUE Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 26P VERT BLUE

¥19.1760
详情
5499786-6

5499786-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 26 POS HDR 15AU R/A W/LONG LATCHES Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 26POS .100 GOLD Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 26WAY A/L UNIV HDR 26P RA LG LAT

¥14.6880
详情
5102322-6

5102322-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 26POS .100 GOLD Headers & Wire Housings 26P UNIV HDR R/A LG LAT Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P RA LG LAT

¥27.9460
详情
2-5499206-6

2-5499206-6

te connectivity / amp

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 26POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings .1CL IDC HDR 2X13P VRT EJE Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY 26waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT LG LAT BLUE

¥19.9920
详情
2-111446-0

2-111446-0

te connectivity / amp

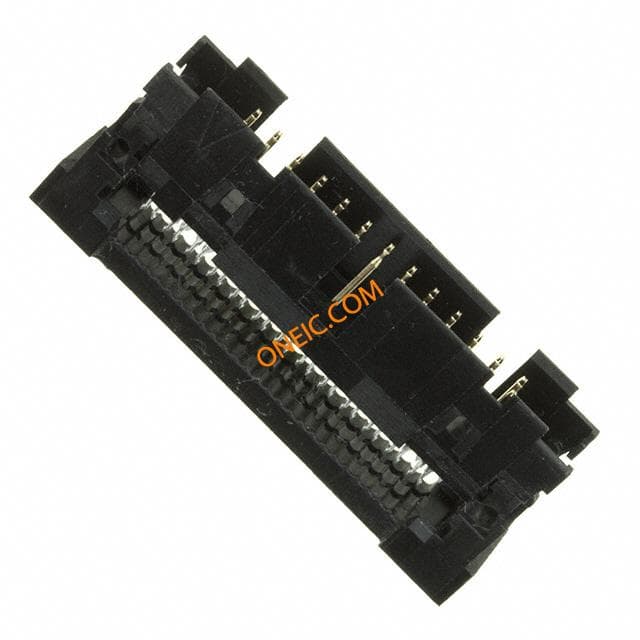

Conn IDC Connector PL 26 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 26POS 30AU NO LATCH Ribbon cable conn.male,26 way,2.54mm,blk Headers & Wire Housings 100X100 I/O PLG 2X13P Conn IDC Connector PL 26 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 26PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 26WAY Ribboncableconn.male,26way,2.54mm,blk TE Connectivity AMP-LATCH 系列 2行 26路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 026 UNIV I/O 30DP NO EARS
