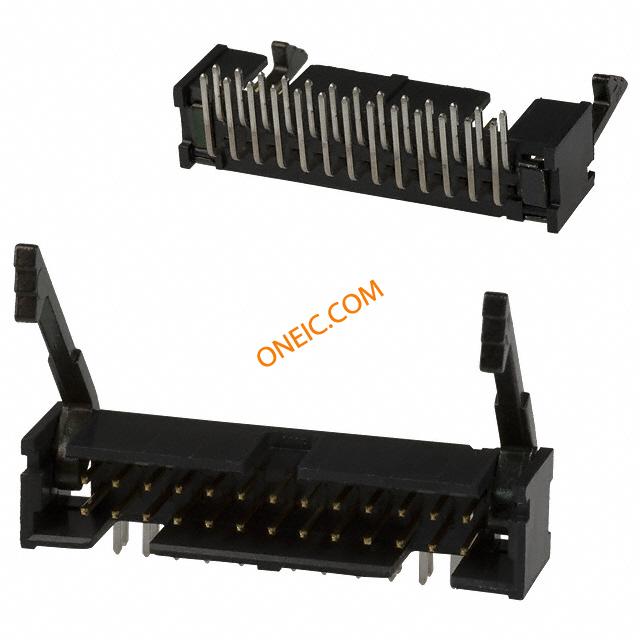

1761609-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 26POS Headers & Wire Housings 100X100 HDR 2X013P R/A LOW PROFILE Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM IDC LOW PRO HDR 26P RA SHT LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 13 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 00000000 | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Ejection | 最大额定电流 | 1/Contact A |
| 最小输入电压 | 250VAC | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0 | 包装方式 | Tube |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Pin Header | 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| 紧固类型 | Latch, Short/Eject Hooks | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 3.81 [0.150] |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 26 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 26 | 接触长度 - 配合 | 0.237" (6.02mm) |
| 端子柱长度 | 2.60 [0.102] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | With | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
文档与媒体
相关型号
1658623-6
te connectivity / amp
Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS GOLD Connector,Receptacle,Novo,26,Gold(30) Connector; Receptacle; Novo; 26; Gold (30); Tin-Lead; 0.100 in. x 0.100 in. Headers & Wire Housings .1CL IDC REC 2X13P MIL 30AU Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Connector,Receptacle;Novo;26;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 母 IDC 连接器 , 电缆安装 26 NOVO MIL 30DP, LEAD FREE
1658620-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS 15 GOLD CONNECTOR, RECEPTACLE, NOVA, AMP-LATCH Headers & Wire Housings MLTRY PLRZD RECPT 26 NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,26POSITION,WITHMATINGPOLARIZATION 26 NOVO MIL 15DP, LEAD FREE
1658621-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 26POS W/POL 15 GOLD 26way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 26P NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, HEADER, IDC, 2.54MM, 26WAY Connector,Receptacle;Novo;26;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:26; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 26P, 1658621-6, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 直角 电缆安装 母 IDC 连接器 26 NOVO MIL/CTR 15DP,LEAD FREE
1658622-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 26POS W/POL GOLD AMP-Latch receptacle,0.08-0.15mm²,26way Headers & Wire Housings .1CL IDC REC 2X13P C&M 30AU Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Connector,Receptacle;Novo;26;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 直角 电缆安装 母 IDC 连接器 26 NOVO MIL/CTR 30DP,LEAD FREE
1-1658526-5
TE Connectivity / AMP
Headers & Wire Housings IDC RCPT 26P Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 26POS VERT GOLD Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 26WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,26POSITION,MATINGPOLARIZATION 609-2630LF FEM SOCKT,LEAD FREE
1658527-9
TE Connectivity
CONN RCPT 26POS .100 W/STR REF Ribbon Cable Connectors (AMP-LATCH) Ribbon cable conn.rcpt.26way,2.54mm,blue Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 26ReceptacleMating Polarization Type = Center & MilitaryWith Mating Polarization RIBBONCONN.RCPT.26WAY TE Connectivity AMP-LATCH 622 系列 2行 26路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 622-2630LF FEM SOCKT,LEAD FREE
