5499374-6

点击放大查看

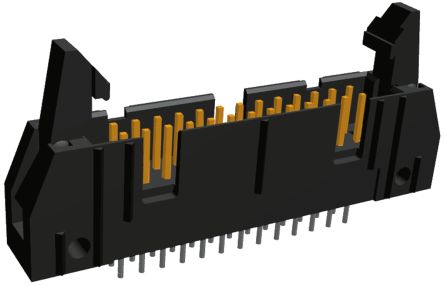

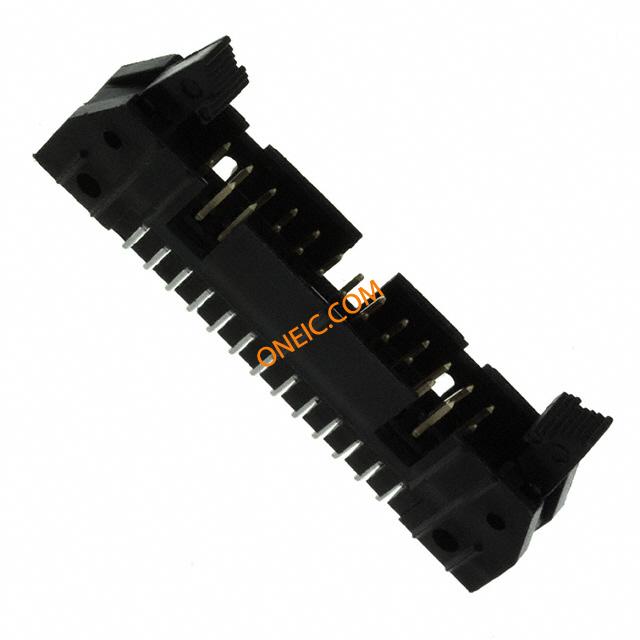

5499374-6

制造商
TE Connectivity Ltd.
描述Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X013P VRT EJE Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT SHT LAT
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量40

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Series开关功能Ejection
最大额定电流1/Contact A最小供电电压250VAC

机械参数

颜色Black深度8.53 mm
间距2.54 mm高度23.09 mm
重量1包装方式Tray
遮蔽类型Yes排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
柱间距2.54 x 2.54 [.100 x .100]极化Center, Dual Polarizing Bar, Military
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
连接器类型Universal Ejection Pin Headers接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
紧固类型Latch Lock/Eject Hooks安装样式Through Hole
排数2封装形式4-Sided
电路板厚度3.18 [0.125]锁定特性Latch
外形（宽 x 高）Standard触头材料Brass/Phos Bronze
壳体材料Thermoplastic总长度52.32 mm
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向With
触点数26接触件端接:Through Hole Vertical
位数26接触长度 - 配合0.240" (6.10mm)
端子柱长度3.94 [0.155]接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别HDR
系列AMP-LATCH产品子类型Headers
其他规格With加载位置数All

环境参数

温度额定值Standard工作温度-65C to 105C

文档与媒体

PDF 文档
1599153.pdf
