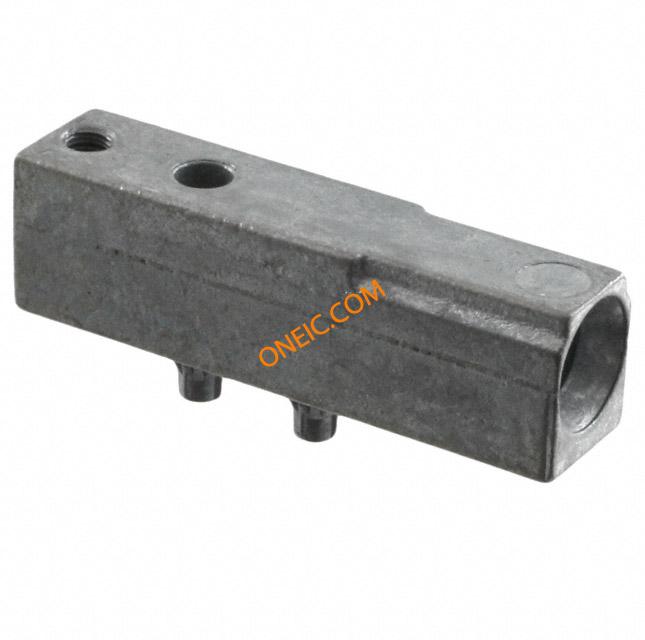

5223979-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Guide Module Zinc Alloy Die Casting Chromate Conversion Finish Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE MODULE RT ANG High Speed / Modular Connectors UPM GUIDE MODULE Connector Accessories Guide Module Zinc Alloy Die Casting Chromate Conversion Finish Product Highlights:Guide ModuleNot KeyedSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, Zinc Alloy Die Casting Connector Accessory Guide Module UPM GUIDE MODULE |
| 分类 |
商业参数
| 产品类别 | High Speed / Modular Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接口 | 2mm HM | ||
机械参数
| 深度 | 34.2 mm | 表面处理 | Chromate Conversion |
| 高度 | 9.7 mm | 长度 | 34.2 |
| 材料（通用） | Zinc Alloy Die Casting , Zamak 3 | 包装方式 | Bulk |
| 安装类型 | Right Angle | 接触镀层 | 锌合金 |
| 壳体材料 | 聚对苯二甲酸丁二酯 | 总长度 | 7.9 mm |
| 框架材料 | 锌合金冲模压铸，Zamak 3 | 包装数量 | 1 |
| 连接器 - 电缆 | Yes | 外壳材料及表面处理 | 铬酸盐转换 |
产品信息
| 备注 | With dual alignment posts. | 类型 | Guide Module |
| 钥匙类型 | 否 | 编码、键控 | No |
| 产品子类型 | Guide Module | 附件类型 | Guide Module |
| 射频系列/标准 | 5223979 | 适用产品/相关产品 | UPM Series |
