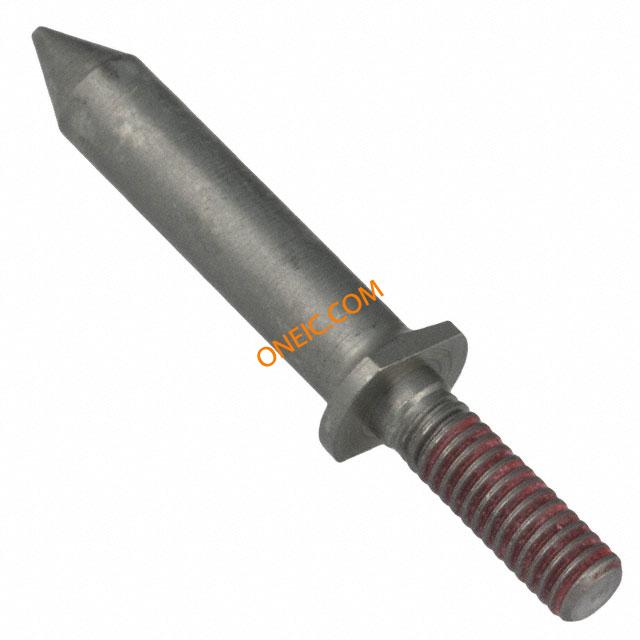

223969-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Guide Pin Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN 2MM GUIDE PIN M4X7-6G STEEL Hard Metric Connectors UNV PWR MDL Connector Accessories Guide Pin Stainless Steel Product Highlights:Guide PinNot KeyedThread Length = 12.70 mmThread Size = M4 x 7-6GSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE PIN, UPM, M4 X 7-6G, 12.70MM UNV PWR MDL, GUIDE PIN LOCT PL |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 深度 | 5.92 mm | 重量 | 0.05 |
| 包装方式 | Bulk | 螺纹尺寸 | M4 x 7-6G |
| 安装类型 | Vertical | 螺纹长度 | 12.70 [0.500] |
| 安装样式 | PCB | 排数 | 1 |
| 插入件材料 | Passivated Stainless Steel | 触头材料 | Stainless Steel |
| 壳体材料 | Zinc | 端接样式 | Screw |
| 触点数 | 1 | ||
产品信息
| 备注 | With 6.35 mm [.250 in.] Hex Base. | 类型 | Guide Pin |
| 系列 | :Z-PACK | 编码、键控 | No |
| 产品子类型 | Guide Pin | 附件类型 | Guide Pin |
| 规格说明 | M4 Thread | 射频系列/标准 | 223969 |
| 适用产品/相关产品 | :Universal Power Modules | ||
相关型号

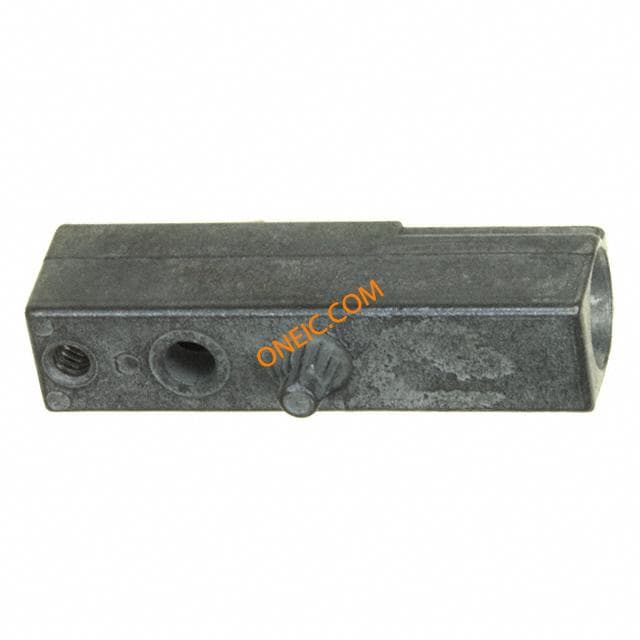

5223957-1
te connectivity / amp
Connector Accessories Guide Module Zinc Alloy Die Cast Chromate Finish Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN MODULE FEMALE GUIDE 2MM Guide female r/a U-P Module 4-40 Hard Metric Connectors ACC:FEM GUIDE MOD B-PLANE UPM Connector Accessories Guide Module Zinc Alloy Die Cast Chromate Finish Product Highlights:Guide ModuleNot KeyedThread Size = 4-40Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE MODULE, Z-PACK UNIVERSAL POWER MOD GUIDEMODULE,UNIVERSALPOWERPACK,4-40,RIGHTANGLE Universal 4-40 Thread Right Angle Power Guide Module TE Connectivity 背板导柱 UPM GUIDE MODULE

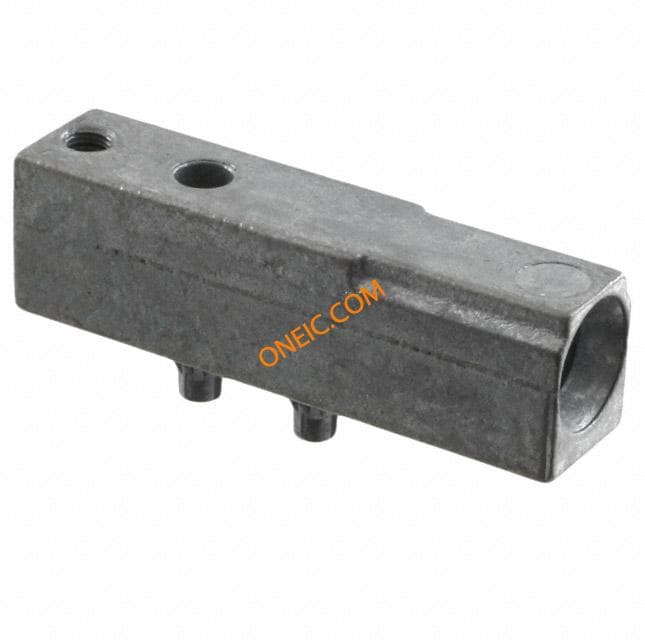

5223979-1
