点击放大查看

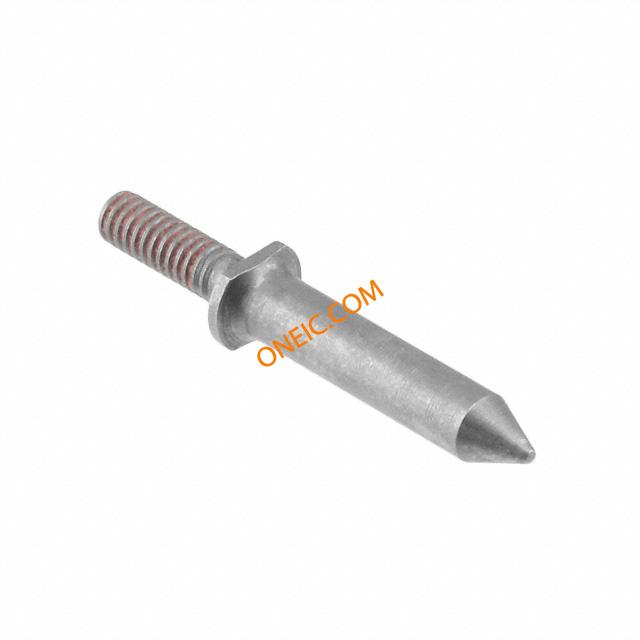

223969-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Guide Pin Passivated Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN 2MM GUIDE PIN 8-32 STEEL Hard Metric Connectors GUIDE PIN FOR Z-PACK Connector Accessories Guide Pin Passivated Stainless Steel Product Highlights:Guide PinNot KeyedThread Length = 12.70 mmThread Size = 8-32 UNC-2ASearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE PIN, UPM, 8-32 UNC-2A, 12.70MM UNVPWRMDL,GUIDEPINLOCTPL UNV PWR MDL, GUIDE PIN LOCT PL |
| 分类 |
商业参数
| 其他名称 | 2239694 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 深度 | 7.8 mm | 高度 | 5.92 mm |
| 重量 | 0.05 | 包装方式 | Bulk |
| 螺纹尺寸 | 8-32 UNC-2A | 安装类型 | Straight |
| 螺纹长度 | 12.70 [0.500] | 安装样式 | PCB |
| 排数 | 1 | 插入件材料 | Passivated Stainless Steel |
| 触头材料 | Stainless Steel | 壳体材料 | Zinc |
| 端接样式 | Screw | 触点数 | 1 |
产品信息
| 备注 | With 6.35 mm [.250 in.] Hex Base. | 类型 | Guide Pin |
| 系列 | :Z-PACK | 已删除 | Compliant |
| 编码、键控 | No | 产品子类型 | Guide Pin |
| 附件类型 | Guide Pin | 规格说明 | 8-32 Thread |
| 射频系列/标准 | 223969 | 适用产品/相关产品 | :Universal Power Modules |
