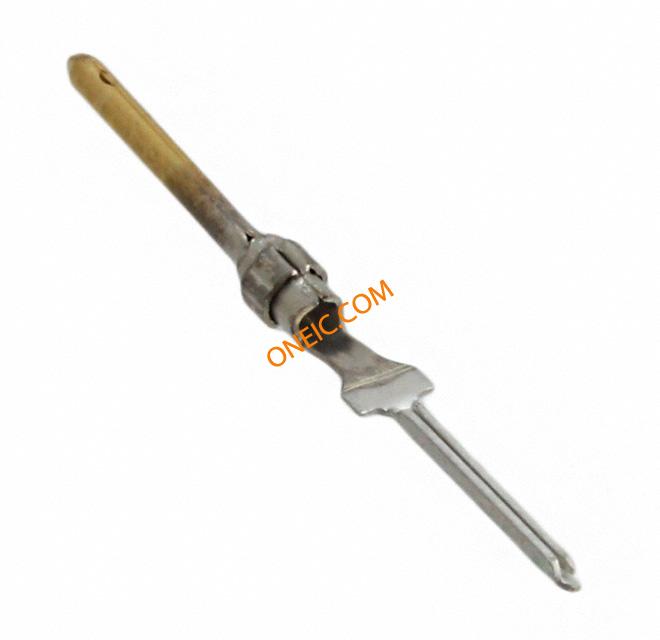

5-745287-0

点击放大查看

5-745287-0

制造商
TE Connectivity Ltd.
描述Contact PIN Solder ST Cable Mount Loose Piece Standard Cable Connectors CONN D-SUB PIN 16.54MM SOLDER Pin & Socket Connectors 20DF PIN POST BR/AU Standard Cable Connectors Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinBrass Contact Base MaterialWire Termination Type = SolderSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub 20 DF PIN CONTACT DUPLEX/LP
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

标准包装规格1,000产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗焊接

机械参数

镀层Gold材料（通用）Brass
包装方式Bulk导线线规1.02 mm [ .04 in ]
端接方式Solder触点尺寸20
触头类型Power引脚直径1.02 [0.040]
触点形状Square插针或插孔Pin
端子尺寸20连接器类型Connector D-Subminiature
接触镀层Gold Over Nickel|Gold Over Palladium Nickel Over Nickel插入件材料黄铜
触头材料Brass包装数量Loose Piece
尺寸/外形0.64 [.025]绝缘高度No
端接样式插针外径.64 mm [ .025 in ]
接触件端接Crimp Snap-In镀层厚度（通用）Flash
端子柱长度16.54 [0.651]接触镀层厚度30
外壳尺寸，连接器布局压接扣入式

产品信息

类型Stamped等级Standard
连接器性别PIN系列HDP-20 (Crimp Snap)
产品子类型Contact
