点击放大查看

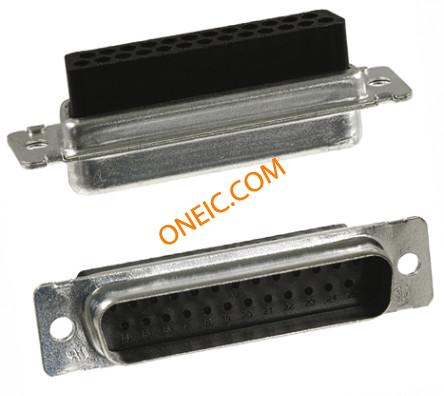

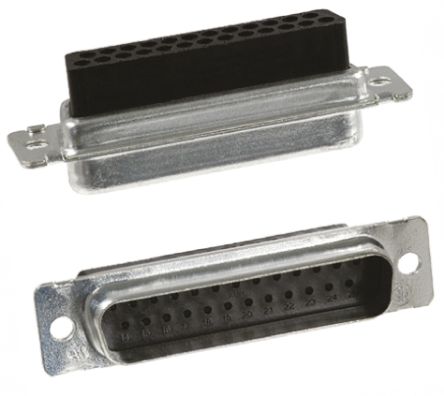

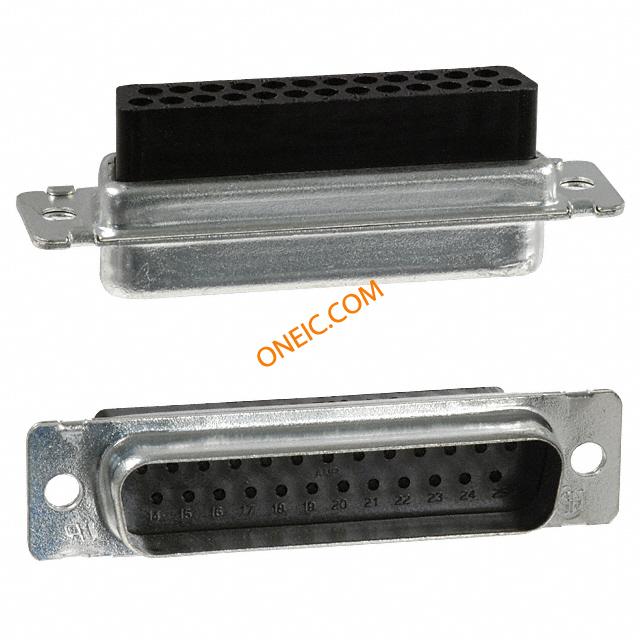

207464-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 25 POS Crimp ST D-Sub Standard Connectors HDP-20 25P PLUG Standard Cable Connectors CONN D-SUB HOUSING PLUG 25POS AMPLIMITE HDP-20 Cable Plug 3mm hole 25P Conn Housing PL 25 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 3, STEEL Conn;D-Sub;CablePlug;25Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 25路 直 压接式 D-sub 连接器, 插头 HDP-20,PLUG,SIZE 3, 25 POSN |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 3.7/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 17.8 mm |
| 高度 | 12.54 mm | 重量 | 0.005 |
| 包装方式 | Bulk | 外壳尺寸 | 3 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Crimp Snap |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Metal | 壳体材料 | Nylon |
| 总长度 | 53.03 mm | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 25 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 25 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | Plugs accept size 20 DF pin contacts. | 类型 | Housing |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-20 | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts | ||
环境参数
| 工作温度 | -55C to 105C | ||
相关型号
66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
1658539-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts HDP-20 PIN 24-20 Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 Pin Contact 24-20 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HDPINCONT.AUPLTD,LP TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 D-sub 连接器触点, 镀锡镀金 触点, 24 → 20 AWG PIN CONT DUPL PLT LP HD-20 AMP
5205207-1
te connectivity / amp
Conn Housing RCP 25 POS Crimp ST D-Sub Standard Connectors 25P RECPT ZINC Standard Cable Connectors CONN D-SUB HOUSING RECEPT 25POS AMPLIMITE HDP20 d-sub cable socket,25way Conn Housing RCP 25 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE SIZE 3 STEEL Conn;D-Sub;CableSocket;25Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 25路 直 压接式 D-sub 连接器, 插座 HD RECPT ASSY SIZE 3
66506-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Connector PIN CONTACT 24-20AWG sel gold o/nickel Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, CRIMP, PIN, 24-20AWG Contact,Pin,20DF,Male Crimp Contact 7.5 A, 66506-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONTACT, 20 DF
6-66506-2
te connectivity / amp
Contact PIN Wire Wrap ST Cable Mount Loose Piece D-Sub Contacts CRIMP SNAP PIN CONN PIN 20-24AWG GOLD CRIMP
66506-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TERMINAL, 24-20 AWG CONTACT,PIN,HDP-20,PLATED,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG HD 20 DF PIN PLTD
164533-4
te connectivity / amp
Conn Housing RCP 25 POS Crimp ST D-Sub Standard Connectors 25P HDP20 REC ASSY Standard Cable Connectors CONN D-SUB RCPT 25POS CRIMP SNAP BOX FOR FEMALE D-SUB 25 Conn Housing RCP 25 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET HOUSING, D, 25WAY D-Sub; PIN:25; female; w/o terminals; for cable; B:7.9mm; C:47mm D-Sub crimp socket-housing 25P, 164533-4, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 25路 直 压接式 D-sub 连接器, 插座 25P.HDP20 REC.ASSY.
207463-1
te connectivity / amp
Conn Housing RCP 25 POS Crimp ST D-Sub Standard Connectors 25P SOCKET TIN Standard Cable Connectors CONN D-SUB HOUSING RECEPT 25POS AMPLIMITE HDP20 d-sub cable socket,25way Conn Housing RCP 25 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;25Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 25路 直 压接式 D-sub 连接器, 插座 CRIMP SNAP RCPT ASSY,SZ 3
5207908-7
te connectivity / amp
Connector Accessories Backshell/Cable Clamp Thermoplastic Individual Shell Size 3 D-Sub Backshells CABLE CLAMP KT SZ3 Backshell/Cable Clamp 90°/180° 3 Shell Size Thermoplastic Individual Cable Clamps CONN BACKSHELL DB25 PLASTIC Hood,D-Sub,25Pos,Straight/90DegExit Backshell/Cable Clamp 90�/180� 3 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 3 Shell Size Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Box and LidStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 9.91 mmShell Size = 3Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 3, THERMOPLASTIC Hood;D-Sub;25Pos;Straight/90DegExit;HD-20Series;Thermoplastic;0.390In.CblDia TE Connectivity HD-20 系列 25 路 直角，直 热塑性 D-sub 连接器底壳 STRAIN REL W/SCRW RET KIT,SZ 3
207516-6
te connectivity / amp
Conn D-Subminiature RCP 25 POS Crimp ST Panel Mount 25Terminal 1Port D-Sub Standard Connectors 25 HD20 RCPT ASSY CONN D-SUB RCPT 25POS CRIMP
1658662-1
te connectivity / amp
Conn Housing RCP 25 POS Crimp ST Bulk D-Sub Standard Connectors DSUB B25S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 25POS W/O CONT Conn Housing RCP 25 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;25Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingHDWRKit HDP20 Series 25 Position Shielding Hardware Socket Metal Kit D-Sub KIT,HDP-20,OVRMLD,RCPT,SIZE 3,
207516-3
TE Connectivity / AMP
D-Sub Standard Connectors HDP-20 25P SOCKET CONN D-SUB HOUSING RECEPT 25POS
1658658-1
te connectivity / amp
Conn Housing RCP 25 POS Crimp ST Cable Mount Bulk D-Sub Standard Connectors HDP-20 D 25R Standard Cable Connectors CONN D-SUB RECEPT 25POS W/O CONT AMPLIMITE HDP-20 d-sub socket kit,22 way Conn Housing RCP 25 POS Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET & BACKSHELL, D, 25WAY Conn;D-Sub;CableSocket;25Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingEncl.Kit HDP20 Series 25 Position Shielding Hardware Socket Metal Kit D-Sub TE Connectivity AMPLIMITE HDP-20 25触点, 套件包含插孔螺钉和插件 KIT,HDP-20,ENCLSUR,RCPT,SIZE 3
1658539-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts PIN 24-20 BR/AU Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, PIN, 24-20AWG, CRIMP CONTACT,PIN,HDP-20,PLATED,CRIMP,1.27-1.52MM HDP-20 Series 20-24 AWG Gold Flash / Paladium Nickel Crimp Pin D-Sub Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONT DUPL PLT STRIP HD-20
5066682-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CONTACT PIN PLTD Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONT,PIN,PLATED,20DF,STRIP,#24
1658649-1
te connectivity / amp
Conn Housing RCP 25 POS 2.76mm Crimp ST Bulk D-Sub Standard Connectors B25S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 25POS W/O CONT AMPLIMITE HDP20 d-sub socket kit, 25 way Conn Housing RCP 25 POS 2.76mm Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 25POS, STEEL Conn;D-Sub;CableSocket;25Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingHDWRKit TE Connectivity AMPLIMITE HDP-20 25触点 D-Sub插座连接器套件, 套件包含内部屏蔽、外部屏蔽 KIT,HDP-20,OVRMLD,RCPT,SIZE 3,
166995-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN D-SUB PIN 32-28AWG CRIMP
5745833-5
te connectivity / amp
Connector Accessories 25 POS Backshell/Cable Clamp Thermoplastic Shell Bright Nickel Over Copper Finish Size 3 Individual D-Sub Backshells MTL PLTD PLST KIT 25 .43 Cable Clamps CONN BACKSHELL DB25 METAL PLATED Clamp; Cable; Subminiature and microminiature D connectors; 3; 4-40 Backshell/Cable Clamp 180� 3 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 3 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 3 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 10.92 mmNumber of Positions = 25Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 3, THERMOPLASTIC Hood;D-Sub;25Pos;StraightExit;AMP;MetallizedPlastic;0.430In.CblDia;EMI/RFIShield CABLE CLAMP KIT,SZ 3
1658541-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts PIN CONTACT PLTD Standard Cable Connectors CONN PIN 18-22AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Range = 0.4 - 0.8 [22-18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PIN CONT DUPL PLT STRIP HD-20

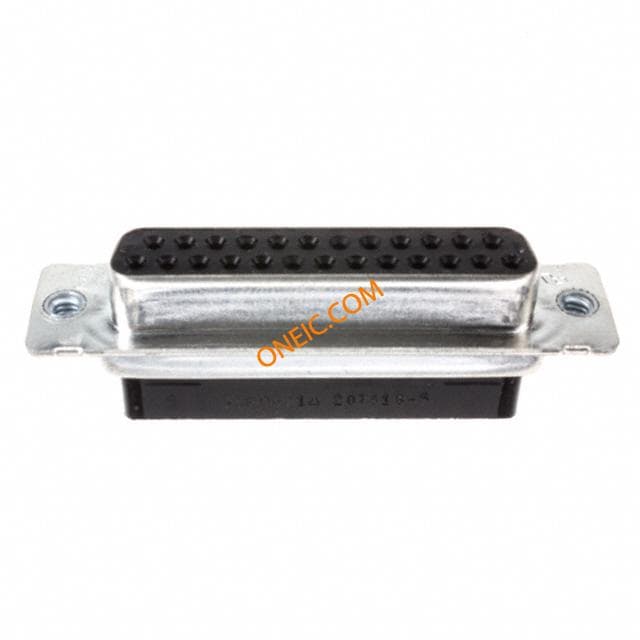

4-27033-1630
