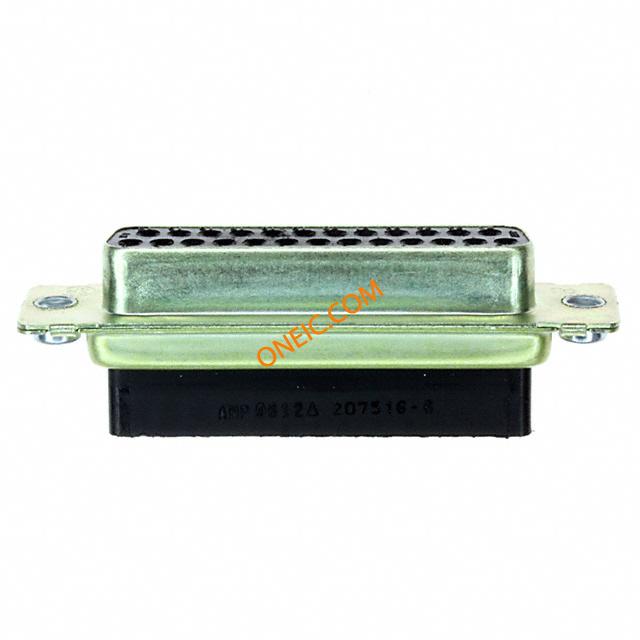

点击放大查看
207516-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature RCP 25 POS Crimp ST Panel Mount 25Terminal 1Port D-Sub Standard Connectors 25 HD20 RCPT ASSY CONN D-SUB RCPT 25POS CRIMP |
| 分类 |
商业参数
| 标准包装规格 | 400 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 800 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Board Side (4-40) | 排数 | 2 |
| 连接器样式 | D-Sub | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 25 | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Yellow Trivalent Chromium Chromate Zinc Plated | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | Contacts Not Provided | 类型 | D-Subminiature |
| 连接器性别 | RCP | ||
