207464-1

制造商	TE Connectivity Ltd.
描述	D-Sub High Density Connectors HDP-20 25P PLUG CONN D-SUB HOUSING PLUG 25POS
分类	连接器解决方案D-Sub连接器

商业参数

其他名称

A1034

标准包装数量

800

机械参数

颜色	Black	包装方式	Bulk
触头类型	Signal	安装类型	Free Hanging (In-Line)
连接器类型	Plug for Male Contacts	法兰特征	Housing/Shell (Unthreaded)
排数	2	连接器样式	D-Sub
介电材料	Polyamide (PA), Nylon, Glass Filled	位数	25
外壳材料及表面处理	Steel, Tin-Lead Plated	外壳尺寸，连接器布局	3 (DB, B)

产品信息

备注

Contacts Not Provided

相关型号

1658539-5

te connectivity / amp

Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts 20DF PIN 24-20 BR/AU Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP Conn Contact PIN 1 POS Crimp ST Cable Mount 1Terminal 1Port Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = Crimp SnapWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PINCONTDUPLPLTSTRIPHD-20 PIN CONT DUPL PLT STRIP HD-20

¥0.3888

详情

66506-3

te connectivity / amp

Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列尺寸20触点公压接信号 D-sub 连接器触点, 镀金镀镍触点, 24 → 20 AWG 20 DF PIN

¥0.3240

详情

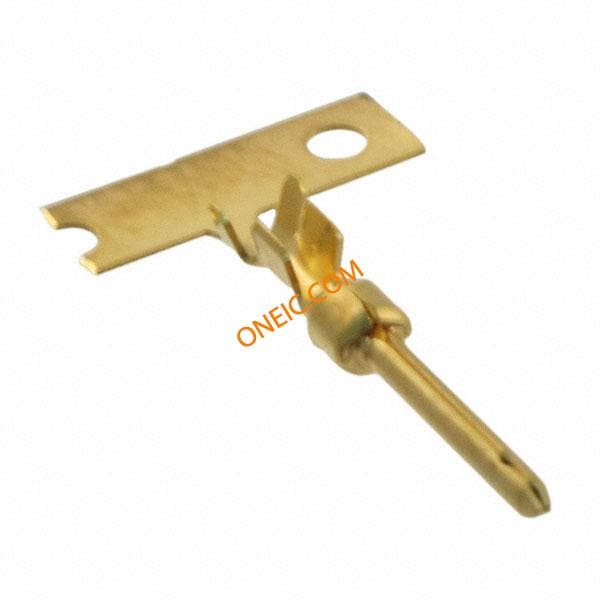

66506-2
