点击放大查看

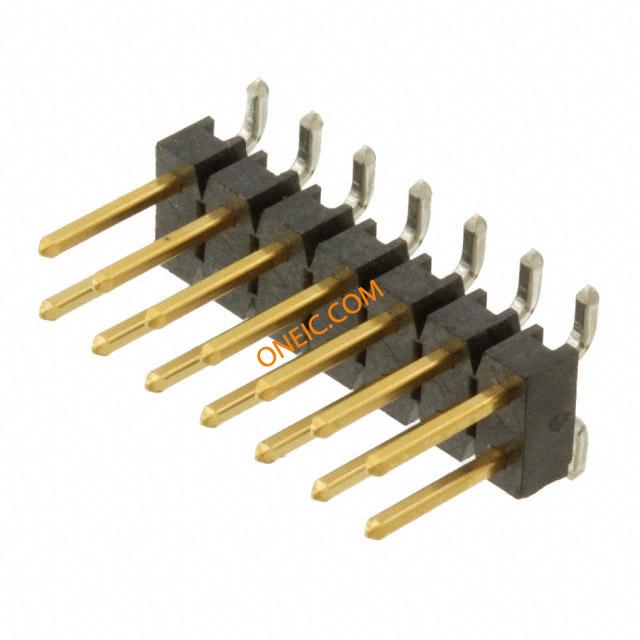

5-146130-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL SMD TE Connectivity AMPMODU Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings VT 2X07P .1 230/SMT 30AU Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Breakaway14 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER,BREAKAWAY,AMPMODU.100,14POS,5.84MM,DUALROW,SURFACEMOUNT TE Connectivity AMPMODU Mod II 系列 2.54mm节距 14路 (2排) 直 引脚管座, 焊接端接, 3A , 表面安装 14 MODII HDR DRST SFMNT B/A LF |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 30 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 750 V | 开关功能 | Unlatched |
| 额定交流电压 | 30 | 连接器阻抗 | 不带 |
| 最大额定电流 | 3A | 绝缘电阻 | 5000 MOhms |
| 保护额定电压（VPR） | 750 V | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 不带 | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 引脚样式 | 直角 |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 第二连接器 | Without | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold Over Nickel |
| 安装样式 | 标准 | 排数 | 2 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 30 |
| 面板安装类型 | 表面贴装 | 主要材料 | InterconnectSystem |
| 端接排数 | 焊接 | 端接样式 | SMD |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 14 | 端接表面处理 | Matte Tin-Lead |
| 位数 | 14 | 引脚总长度 | 2.29 |
| 柱体长度（配合） | 5.84 mm | 安装孔直径 | 不带 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
| 端接镀层厚度 | 100 – 200 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 覆盖范围 | 无覆盖 |
| 钥匙类型 | 否 | 制造商全称 | AMPMODU |
| 产品子类型 | Headers | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度 | Yes |
| 温度范围 | 是 | 工作温度 | - 65 C to + 125 C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
