点击放大查看

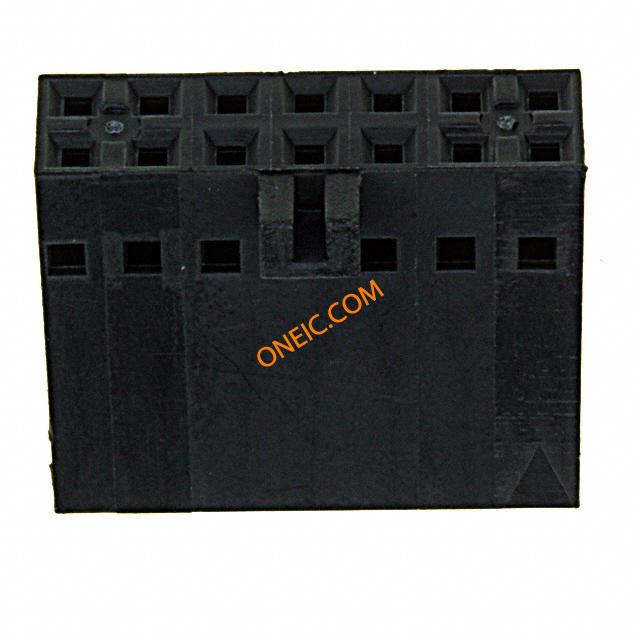

104483-9

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 14 POS POLARIZED Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14 SHORT PT RCPT HSG DR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压	300 VAC	最大额定电流	3 A
最小供电电压	300VAC

机械参数

颜色	Black	深度	12.7 mm
间距	2.54 mm	高度	7.56 mm
重量	0	包装方式	Bulk
导线线规	20-32 AWG	排间距	0.100" (2.54mm)
触头类型	Female Socket	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
接触镀层	:-	安装样式	Wire
排数	2	触头材料	:-
壳体材料	Thermoplastic	总长度	17.72 mm
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	14	接触件端接	Crimp
位数	14

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	Polarizing Key	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

104483-9?RQPN=104483-9

相关型号

104355-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS R/A DUAL

详情

104351-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL 15AU Headers & Wire Housings 14 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A W/HD

¥2.4480

详情

146130-6

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL SMD Headers & Wire Housings 14 CKT VERT SMT HDR Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SFMNT B/A

¥6.1200

详情

146270-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL .100 Headers & Wire Housings 14 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A 100 W/HD

¥2.3800

详情

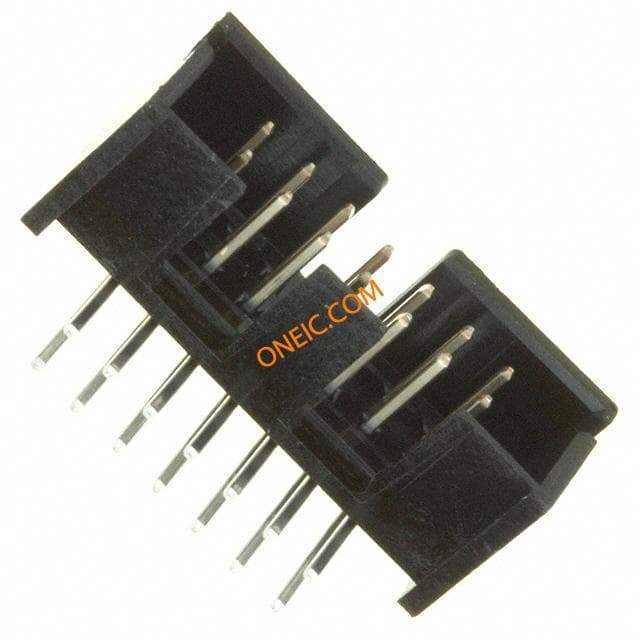

5103310-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;14;Gold A/L LOW PRO HDR 14P RA BLACK

¥4.2160

详情

103311-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR R.A. DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Headerhoriz14way2.54mmAmpLatch TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 014 LOPRO HDR RA 30DP

¥6.3736

详情

146308-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL R/A

详情

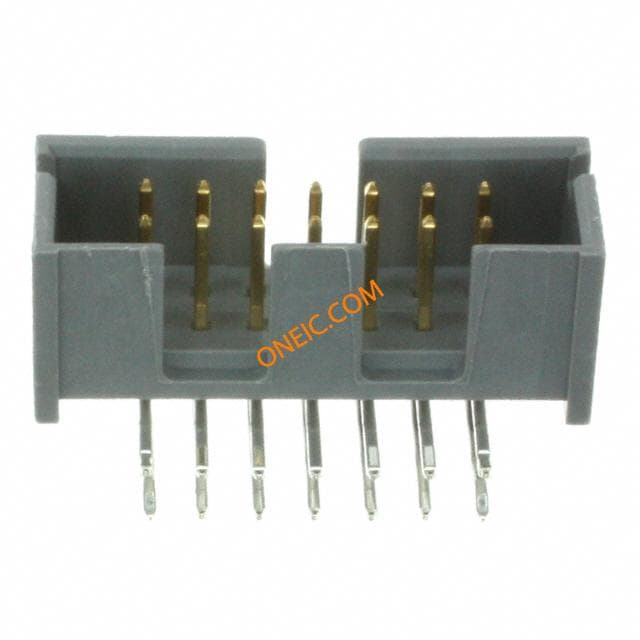

104340-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole CONN HEADER 14POS R/A .100 GOLD

详情

828430-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWY 14PS STR DL AU Headers & Wire Housings 2X 7P MOD2 STIFTLEI 2X 7P AMPMODU II STIFTLEI

¥5.6018

详情

5104338-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO CONN HEADER LOPRO STR 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P VERT HT

¥7.8880

详情

104350-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL 30AU Headers & Wire Housings 14 MODII HDR DRST B/A W/HD Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A W/HD

¥7.6221

详情

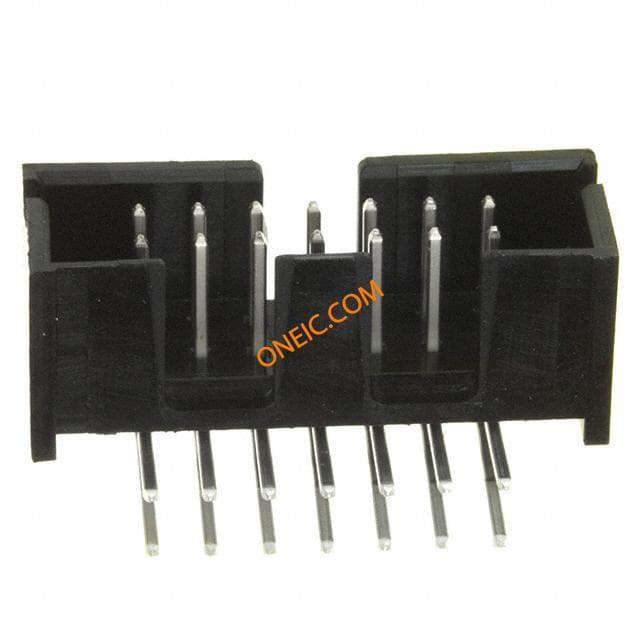

5103311-2
