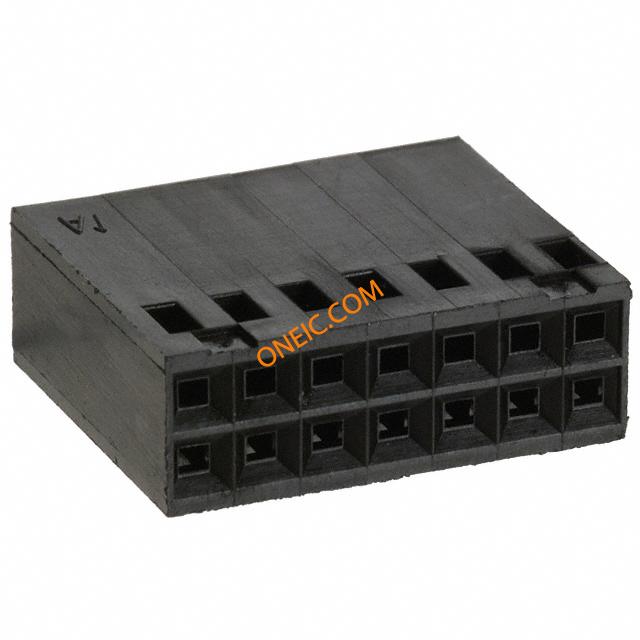

87456-9

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 DUAL ROW Headers & Wire Housings 14P MODIV HOUSING Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM CONNECTOR,HOUSING,RECEPTACLE,MODIV,14POSITION,DUALROW 14 MODIV HSG COMP DR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压	250 VAC	最大额定电流	450 mA
绝缘电阻	5000 MOhms	最小供电电压	250VAC
连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.1 mm
重量	0.00001	包装方式	Bulk
排间距	0.100" (2.54mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	接触镀层	:-
排数	2	触头材料	:-
壳体材料	Nylon	总长度	20.32 mm
主要材料	InterconnectSystem	触点数	14
接触件端接	Crimp	位数	14

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	:Unstamped Housing	制造商全称	AMPMODU/MODIVSeries
产品子类型	Wire Housings	应用细节	Wire-to-Board

环境参数

工作温度

- 65 C to + 105 C

相关型号

102570-5

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 14POS 15AU Headers & Wire Housings ACTION PIN R.A. 14P dual .150 end Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRRA SHRD .100CL

¥7.4120

详情

146130-6

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL SMD Headers & Wire Housings 14 CKT VERT SMT HDR Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SFMNT B/A

¥6.1200

详情

146270-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL .100 Headers & Wire Housings 14 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A 100 W/HD

¥2.3800

详情

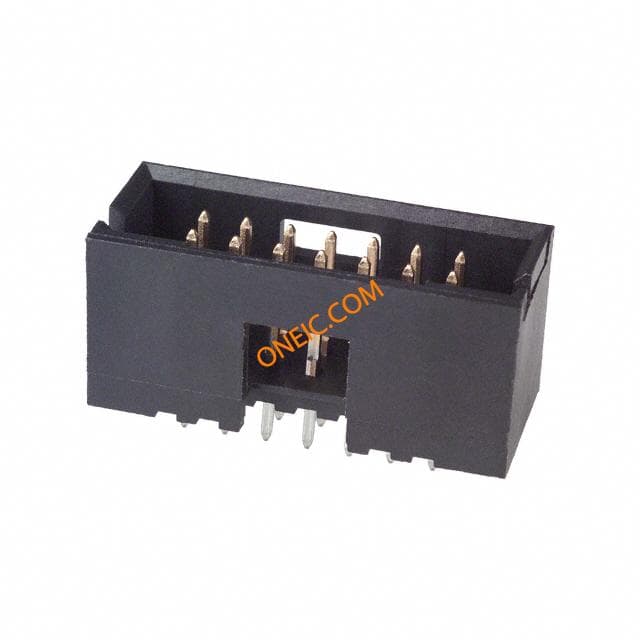

5-102619-5
