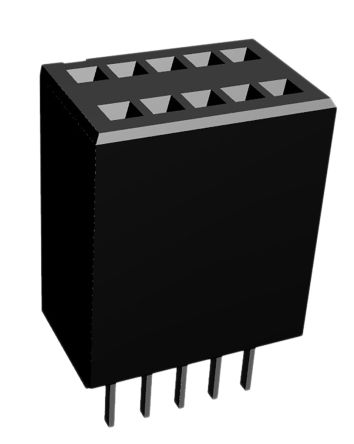

5-104078-3

点击放大查看

5-104078-3

制造商
TE Connectivity Ltd.
描述Conn Socket Strip RCP 10 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 10POS .050" STR GOLD Board to Board & Mezzanine Connectors 10 SYSTEM 50 RCPT ASSY DRST SN 5-104078-3 Conn Socket Strip RCP 10 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Connector - Receptacle10 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU BOARD-BOARD CONNECTOR RECEPTACLE, 10WAY, 2ROW TE Connectivity AMPMODU System 50 系列 2行 10路 垂直 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 10 SYSTEM 50 RCPT ASSY DRST SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Board to Board & Mezzanine Connectors
标准包装数量Rail / Tube

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 V供电电压30
击穿电压500绝缘电阻5,000

机械参数

颜色Black间距1.27 mm
重量0.002包装方式Tube
排间距0.100" (2.54mm)端接方式Solder
外壳颜色Black安装类型Vertical
连接器类型Receptacle接触镀层Gold Over Nickel
安装样式Thru Hole排数2
连接器样式:No触头材料Phosphor Bronze
壳体材料Thermoplastic包装数量Tube
端接样式Through Hole板面高度0.350" (8.89mm)
触点数10接触件端接:Through Hole Vertical
位数10端子柱长度2.54 [0.100]
接触镀层厚度30µin (0.76µm)

产品信息

类型Socket Strip连接器性别RCP
系列AMPMODU SYSTEM 50制造商全称AMP
产品子类型Receptacle Assembly加载位置数All

环境参数

温度范围-65 – +105

文档与媒体

PDF 文档
1650961.pdf
在线文档
5-104078-3?RQPN=5-104078-3
