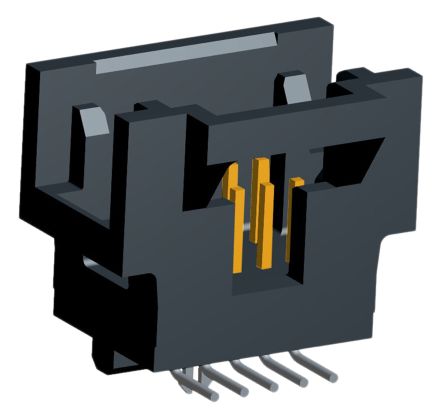

点击放大查看
5-104549-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 10POS AU Headers & Wire Housings 050X100 HDR 2X05P VRT SMT Conn Shrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 10Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 10路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 表面安装 10 SYS50 S/M HDR DRST SHRDSN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 41 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 VAC | 供电电压 | 30 |
| 额定交流电压 | 30 | 连接器阻抗 | 制动器闭锁 |
| 击穿电压 | 500 | 最大额定电流 | 1A |
| 绝缘电阻 | 5,000 | 保护额定电压（VPR） | 500 VAC |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 镀层 | Tin | 底座类型 | 带有 |
| 包装方式 | Tape & Reel (TR) | 遮蔽类型 | Yes |
| 壳体颜色 | 黑色 | 方向 | 垂直 |
| 排间距 | 0.100" (2.54mm) | 稳定剂 | Without |
| 端接方式 | Solder | 引脚间距 | 0.100" (2.54mm) |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Surface Mount |
| 排数 | 2 | 外壳材料（壳体） | 2- 面 |
| 电路板厚度 | 1.57 | 高度（英寸） | 0.435" (11.05mm) |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic Glass Reinforced | 刀片材料 | Copper Alloy |
| 安装特性 | 压具柱体 | 包装数量 | Tube |
| 面板安装类型 | 通孔 | 端接排数 | 焊接 |
| 端接样式 | SMD | 外径 | .381 mm [ .015 in ] |
| 板面高度 | 0.125" (3.18mm) | 触点数 | 10 |
| 端接表面处理 | 带罩 | 位数 | 10 |
| 触头长度-柱 | 0.435" (11.05mm) | 安装孔直径 | 带有 |
| 接触长度 - 配合 | 0.125" (3.18mm) | 端子柱长度 | 2.54 [0.100] |
| 夹持材料 - 镀层 | Tin | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 每排/每行位置数 | All |
| 端接镀层厚度 | 150 – 250 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU System 50 | 覆盖范围 | 覆盖 |
| 产品特性 | Board Lock | 钥匙类型 | 否 |
| 制造商全称 | AMP | 产品子类型 | Header Assembly |
| 选择性装载 | No | 输出配置 | Surface Mount |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度范围 | -65 â +105 |
| 工作温度 | -65 – 105 | ||
