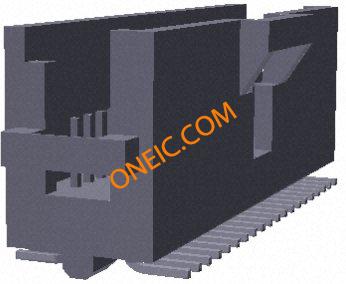

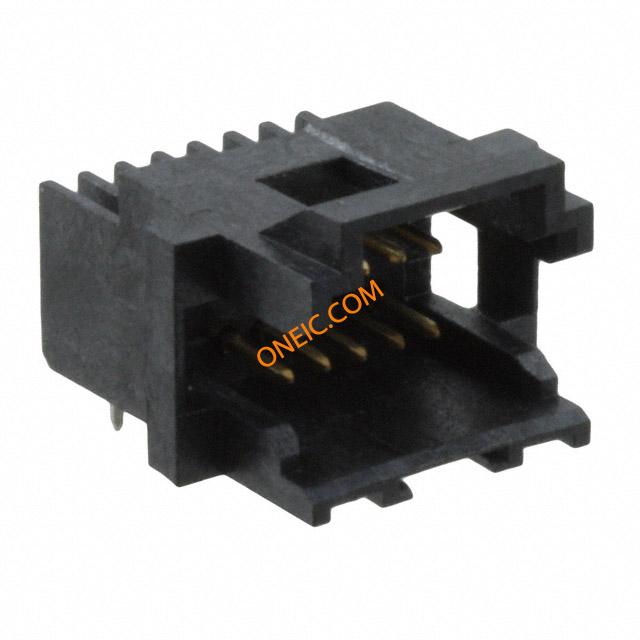

点击放大查看
5-104069-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 10POS .050" R/A GOLD TE Connectivity AMPMODU Series 1.27mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 10 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 10 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 10Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU SYS50SHRDHDRASSY,10SYS50HDRDRRASHRDSN TE Connectivity AMPMODU System 50 系列 1.27mm节距 10路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 10 sys 50 hdr drra shrd sn |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 V ac | 供电电压 | 30 |
| 额定交流电压 | 30 | 连接器阻抗 | 制动器闭锁 |
| 击穿电压 | 500 | 最大额定电流 | 1 |
| 绝缘电阻 | 5,000 | 最小供电电压 | 30VAC |
| 保护额定电压（VPR） | 500 V | ||
机械参数
| 颜色 | Black | 深度 | 13.72 mm |
| 间距 | 1.27 mm | 高度 | 8.89 mm |
| 底座类型 | 带有 | 包装方式 | Tube |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 引脚样式 | 圆形 | 方向 | 直角 |
| 排间距 | 0.100" (2.54mm) | 稳定剂 | Without |
| 端接方式 | Solder | 引脚间距 | 0.100" (2.54mm) |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Right Angle | 连接器类型 | Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Thru Hole |
| 排数 | 2 | 外壳材料（壳体） | 2- 面 |
| 高度（英寸） | 0.350" (8.89mm) | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 12.7 mm | 安装特性 | 压具柱体 |
| 包装数量 | Tube | 面板安装类型 | 通孔 |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 外径 | .381 mm [ .015 in ] | 板面高度 | 0.125" (3.18mm) |
| 触点数 | 10 | 端接表面处理 | 带罩 |
| 位数 | 10 | 触头长度-柱 | 0.350" (8.89mm) |
| 安装孔直径 | 带有 | 接触长度 - 配合 | 0.125" (3.18mm) |
| 端子柱长度 | 2.54 [0.100] | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 每排/每行位置数 | All |
| 端接镀层厚度 | 150 – 250 | ||
产品信息
| 备注 | Note 1: Hold down posts located as shown for 16 through 100 position headers.; | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU |
| 覆盖范围 | 覆盖 | 钥匙类型 | 否 |
| 制造商全称 | AMP | 产品子类型 | Header Assembly |
| 选择性装载 | No | 输出配置 | Through Hole, Right Angle |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度范围 | -65 â +105 |
| 工作温度 | -65C to 105C | 封装热阻 | 1.397 mm [ .055 in ] |
