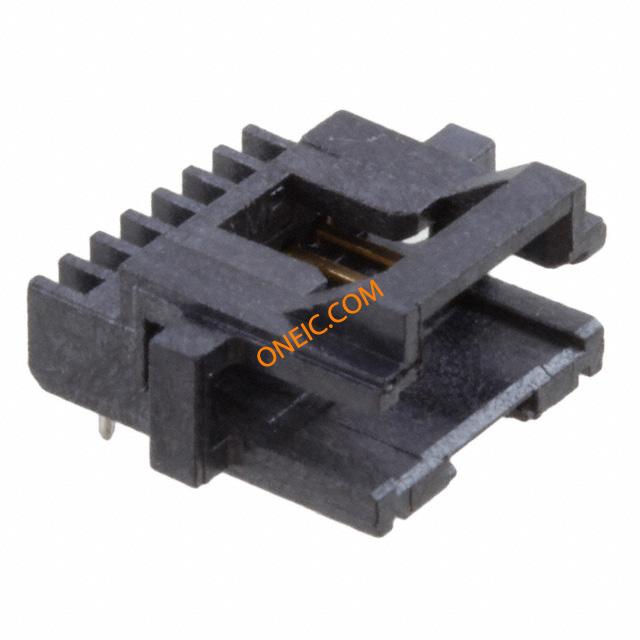

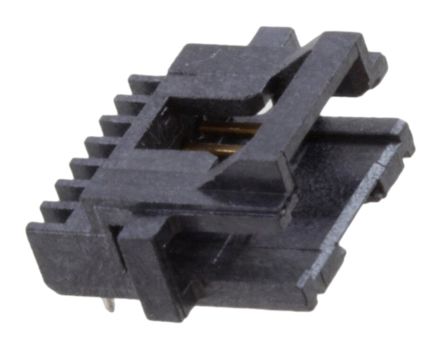

5-104074-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 5POS .050 R/A GOLD Headers & Wire Housings 050X100 HDR 1X05P R/A T/H Conn Shrouded Header HDR 5 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Connector Type = Header - Pin5 PositionsNumber of Rows = SingleShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU CONNECTOR, HEADER, THT, 2.54MM, 5WAY TE Connectivity AMPMODU System 50 系列 1.27mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 1A , 通孔 05 SYSTEM 50 HDR SRRA SHRD SN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU System 50 Series | 额定电压 | 30 VAC |
| 供电电压 | 30 | 击穿电压 | 500 |
| 绝缘电阻 | 5,000 | 最小供电电压 | 30VAC |
机械参数
| 颜色 | Black | 深度 | 11.17 mm |
| 间距 | 0.050" (1.27mm) | 高度 | 6.35 mm |
| 重量 | 0.02 | 包装方式 | Tube |
| 遮蔽类型 | Yes | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Shrouded | 接触镀层 | Tin over Nickel |
| 安装样式 | Thru Hole | 排数 | Single |
| 高度（英寸） | 0.250" (6.35mm) | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 12.7 mm |
| 包装数量 | Tube | 端接样式 | Through Hole |
| 触点数 | 5 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 5 | 接触长度 - 配合 | 0.125" (3.18mm) |
| 端子柱长度 | 2.54 [0.100] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Note 1: Hold down posts located as shown for 10 through 30 position headers.; * | 类型 | Shrouded |
| 连接器性别 | HDR | 系列 | AMPMODU System 50 |
| 制造商全称 | AMP | 产品子类型 | Header Assembly |
| 加载位置数 | All | ||
