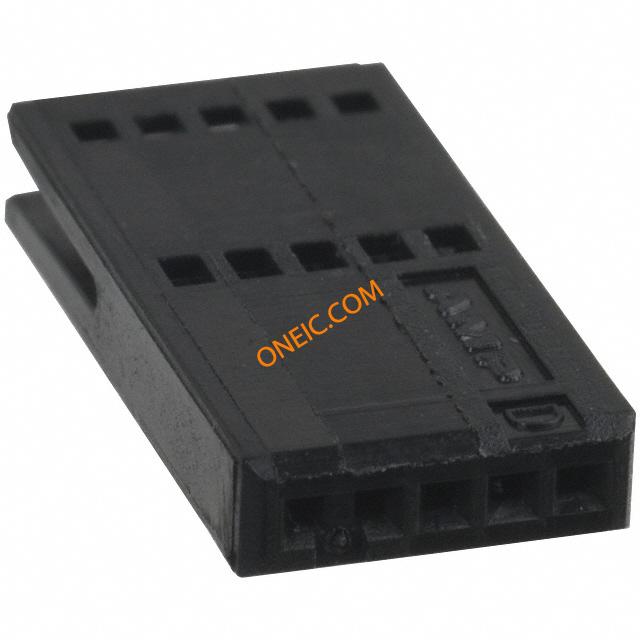

487544-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 5POS .050 SINGLE FFC & FPC Connectors 5P RCPT HOUSING 487544-2 Conn Housing RCP 5 POS 1.27mm Crimp ST Cable Mount Product Highlights:Applies To CableNot PreloadedConnector Type = RectangularHousing Gender = Plug5 PositionsSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 005 HOUSING FFC RCPT 050CL SR |
| 分类 |
商业参数
| 其他名称 | 4875442 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 100V | 供电电压 | 100 VAC |
| 输入电阻 | 5000 | 钳位电压 | 300 |
| 连接器阻抗 | 制动器窗口 | 击穿电压 | 300 |
| 最大额定电流 | 1.5A | 绝缘电阻 | 5,000 |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | Flexible Flat Conductor Cable |
| 第二连接器 | With | 边缘接触 | No |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Female Contacts | 接触镀层 | Gold |
| 排数 | 1 | 连接器用途 | Receptacle |
| 插入力 | Normal | 锁定特性 | Detent Windows |
| 壳体材料 | Thermoplastic | 包装数量 | 1 |
| 面板安装类型 | 不带 | 端接样式 | 插座 |
| FFC/FCB厚度 | 0.05-0.08mm | 触点数 | 5 |
| 位数 | 5 | 安装孔直径 | 不带 |
| 中心触点材料 | 1.27 [0.050] | ||
产品信息
| 备注 | Note 1: Plain housings are side-to-side stackable on either straight or right-a | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 487 |
| 产品特性 | Detent Lock | 产品子类型 | Housing |
环境参数
| 温度范围 | -55 â +105 | 工作温度 | -55°C ~ 105°C |
文档与媒体
