487545-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 1.27mm Crimp ST .050 X .100 AMPMODU System 50 CONN RECEPT 5POS .050 W/LATCH FFC & FPC Connectors 5P RCPT HOUSING Conn Housing RCP 5 POS 1.27mm Crimp ST Product Highlights:HousingHousing Type = Housing - Receptacle5 PositionsNumber of Rows = SingleWith Mating Connector LockSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU FFC/FPC CONNECTOR, RECEPTACLE, 5POS 1ROW 005 HOUSING FFC RCPT 050CL SR |
| 分类 |
商业参数
| 其他名称 | 4875452 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 100V | 击穿电压 | 300 |
| 最大额定电流 | 1.5A | 绝缘电阻 | 5,000 |
机械参数
| 颜色 | Black | 深度 | 14.86 mm |
| 间距 | 1.27 mm | 高度 | 6.22 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 电缆类型 | Flexible Flat Conductor Cable | 第二连接器 | With |
| 边缘接触 | No | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing for Female Contacts |
| 接触镀层 | Gold | 排数 | 1 |
| 连接器用途 | Receptacle | 插入力 | Normal |
| 锁定特性 | Latch | 触头材料 | :- |
| 壳体材料 | Thermoplastic | 总长度 | 7.44 mm |
| FFC/FCB厚度 | 0.05-0.08mm | 触点数 | 5 |
| 接触件端接 | :- | 位数 | 5 |
| 中心触点材料 | 1.27 [0.050] | ||
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 487 | 产品特性 | Latch Lock |
| 产品子类型 | Housing | ||
环境参数
| 温度范围 | -55 â +105 | 工作温度 | -55°C ~ 105°C |
文档与媒体
相关型号
104071-2
te connectivity / amp
Conn Shrouded Header HDR 5 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 5POS .050 VERT GOLD Headers & Wire Housings 05 SYSTEM 50 HDR SRST SHRD .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 5Number of Rows = SingleShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 05 SYSTEM 50 HDR SRST SHRD

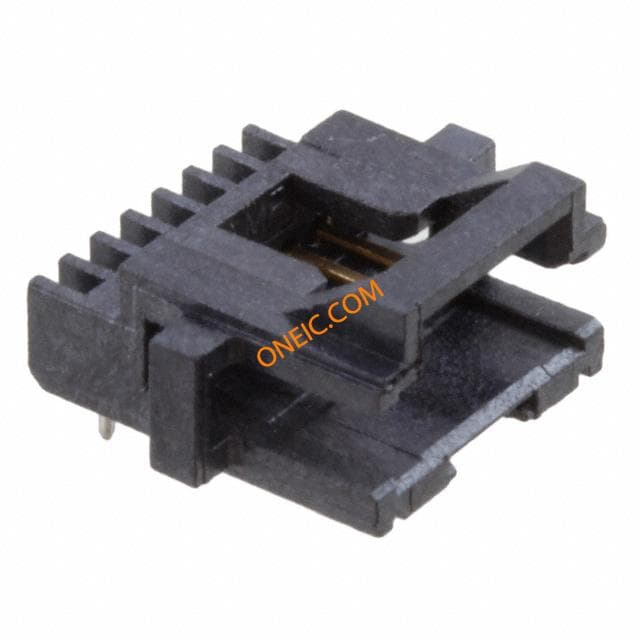

5-104074-2
te connectivity / amp
Conn Shrouded Header HDR 5 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 5POS .050 R/A GOLD Headers & Wire Housings 050X100 HDR 1X05P R/A T/H Conn Shrouded Header HDR 5 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Connector Type = Header - Pin5 PositionsNumber of Rows = SingleShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU CONNECTOR, HEADER, THT, 2.54MM, 5WAY TE Connectivity AMPMODU System 50 系列 1.27mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 1A , 通孔 05 SYSTEM 50 HDR SRRA SHRD SN
1-487547-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Flexible Film Contacts CONN RECEPT .050 CRIMP LONG GOLD .050 Contact,rcp,IDC,1.27mm FFC & FPC Connectors 050X100 SKT Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle1.27 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold (30) Contact Mating Area PlatingSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, CRIMP, RECEPTACLE, IDC/IDT CONTACT,RECEPTACLE,FLXIBLEFILM,1.27MMCENTERLINE TE Connectivity FFC 系列 压接接线端子, 压接, 镀金镀镍触点 FFC,RCPT CONTACT,.050" CNTRLIN

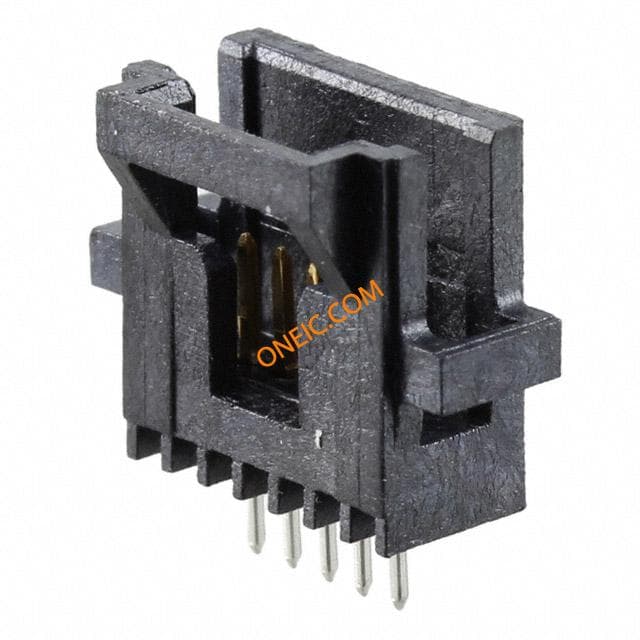

5-104071-2
