353918-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece 1.5mm AMP Mini CT CONN RCPT 24-28AWG 1.5MM CRIMP Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings CT 1.5MM REC CONT CRIMP TYPE Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactTerminate To WireLoose PieceSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP CONTACT,RECEPTACLE,MINICT,1.5MM,CRIMPTYPEII TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 50 V | 接触电阻 | 20mΩ |
| 最大额定电流 | 2 A | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 行程角度 | Straight | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 总长度 | 0.78" |
| 包装数量 | Loose Piece | 主要材料 | Industrial |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 绝缘直径 | 0.88 â 1.00 [0.035 â 0.039] |
| 线规或范围 - AWG | :28AWG | 线规或范围 - mm² | 0.08-0.24² [28-24] |
产品信息
| 连接器性别 | SKT | 系列 | :Mini CT |
| 产品特性 | TypeII | 制造商全称 | MiniCTSeries |
| 产品子类型 | Contact | 连接类型 | Wire |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
179228-4
te connectivity / amp
Conn Housing RCP 4 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 4POS SGL CRIMP 2MM Headers & Wire Housings RCPT 4 POS CRIMP 2mm Conn Housing RCP 4 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, RECEPTACLEHOUSING,4POSITION,2MMPITCH,CRIMPTYPEII TE Connectivity AMP CT 系列 2mm 节距 4 路 直 母 压接连接器外壳 CT CRIMP-2 REC HSG 4P NATURAL
353908-3
te connectivity / amp
Conn Housing RCP 3 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 3POS 1.5MM CRIMP Receptacle housing,1.5mm, 3 way,Mini-CT Conn Housing RCP 3 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 3Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, RECEPTACLEHOUSING,3POSITION,1.5MMPITCH,CRIMPTYPEII TE Connectivity AMP Mini CT 系列 1 行 1.5mm 节距 3 路 直 母 PCB 壳体 CT REC HSG 3P CRIMP TYPE WHITE

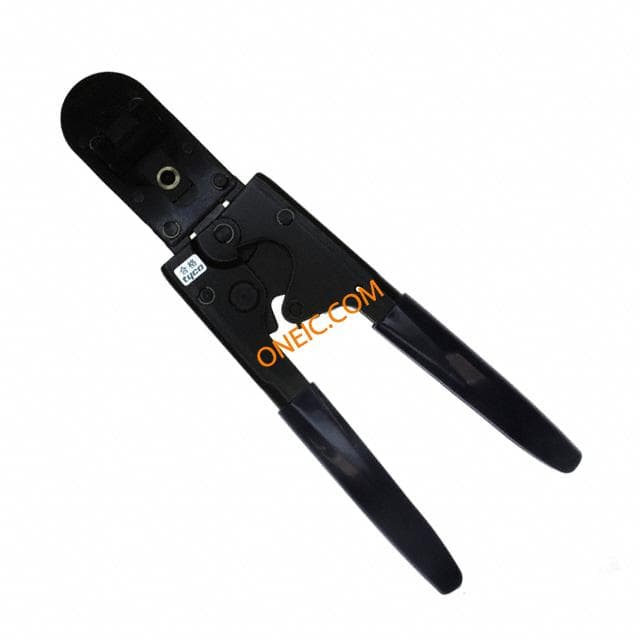

1729069-1
