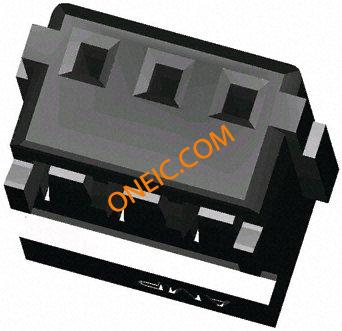

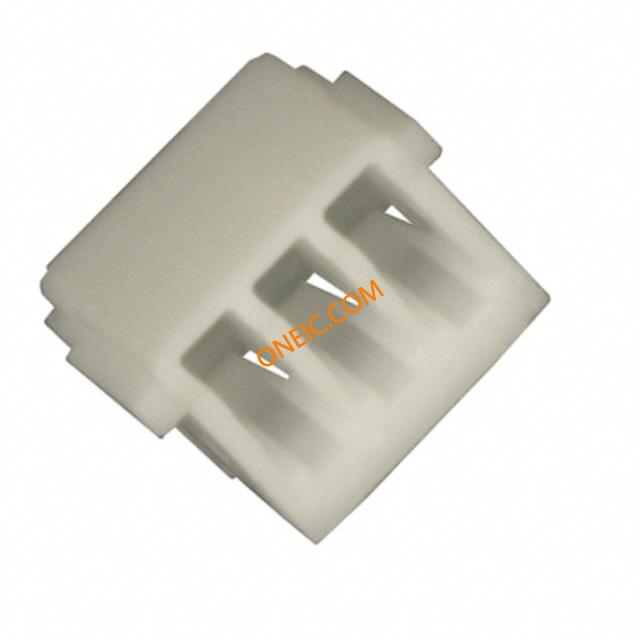

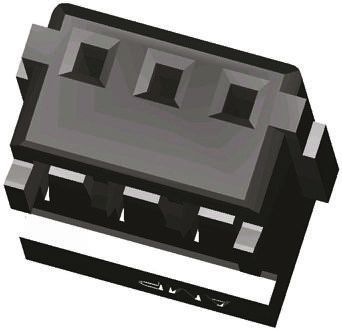

353908-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 3POS 1.5MM CRIMP Receptacle housing,1.5mm, 3 way,Mini-CT Conn Housing RCP 3 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 3Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, RECEPTACLEHOUSING,3POSITION,1.5MMPITCH,CRIMPTYPEII TE Connectivity AMP Mini CT 系列 1 行 1.5mm 节距 3 路 直 母 PCB 壳体 CT REC HSG 3P CRIMP TYPE WHITE |
| 分类 |
商业参数
| 其他名称 | A98654 | 标准包装数量 | Bulk |
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189-133 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 50 VAC, 50 VDC | 输入电阻 | 500 |
| 连接器阻抗 | 压接 | 最大额定电流 | 3 |
机械参数
| 颜色 | White | 深度 | 6mm |
| 间距 | 1.5 mm | 形状 | 矩形 |
| 宽度 | 3.6mm | 高度 | 6 mm [ .236 in ] |
| 长度 | 6mm | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 导线线规 | 24-28 AWG |
| 方向 | 直 | 端接方式 | Crimp |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp | 安装样式 | 不带 |
| 排数 | 1 | 壳体材料 | Nylon 66 |
| 总长度 | 1.50 [0.059] | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.059" | 端接样式 | 插座 |
| 触点数 | 3 | 接触件端接 | Crimp |
| 绝缘直径 | .85 – 1.05 mm [ .0334 – .041 in ] | 位数 | 3 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 353908 |
| 产品特性 | TypeII | 可密封 | 否 |
| 制造商全称 | MiniCTSeries | 产品子类型 | Receptacle Housing |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
相关型号

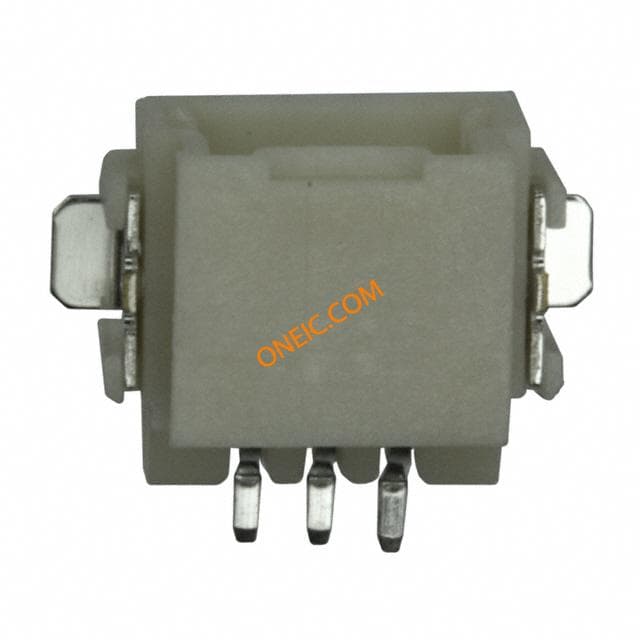

292227-3
te connectivity / amp
Conn Shrouded Header HDR 3 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 3POS R/A SMD TIN Headers & Wire Housings 3P SMT HDR R/A MINI Conn Shrouded Header HDR 3 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 3Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W BOSS 3

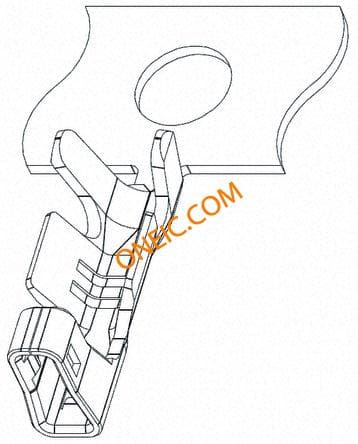

353918-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece 1.5mm AMP Mini CT CONN RCPT 24-28AWG 1.5MM CRIMP Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings CT 1.5MM REC CONT CRIMP TYPE Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactTerminate To WireLoose PieceSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP CONTACT,RECEPTACLE,MINICT,1.5MM,CRIMPTYPEII TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE
353907-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5mm AMP Mini CT CONN CONTACT RECEPT 1.5MM CT Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings REC 28-24AWG PHBZ/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireStripSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP TERMINAL, 24-28 AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL Contact,Receptacle,1.5mmPitch,MiniCT,CrimpType CT 1.5MM REC CONT CRIMP TYPE Datacode:20140316 TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE
292206-3
te connectivity / amp
Conn Shrouded Header HDR 3 POS 1.5mm Solder RA Thru-Hole Loose Piece Headers & Wire Housings 3P DIP HDR R/A MINI NAT 1.5mm 1.5mm AMP Mini CT CONN HEADER 3POS R/A 1.5MM TIN TE Connectivity 292206 Series 1.5mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Conn Shrouded Header HDR 3 POS 1.5mm Solder RA Thru-Hole Loose Piece Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, POSTHEADERASSEMBLY,3POSITION,HORIZONTAL,1.5MMPITCH,DIPSTANDARDTYPE TE Connectivity AMP Mini CT 系列 1.5mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 2A , 通孔 MINI CT SGL DIP H 3P NAT
292207-3
te connectivity / amp
Conn Shrouded Header HDR 3 POS 1.5mm Solder ST Thru-Hole Loose Piece Headers & Wire Housings 3P DIP HDR VT MINI NAT 1.5mm 1.5mm AMP Mini CT CONN HEADER 3POS VERT 1.5MM TIN TE Connectivity 292207 Series 1.5mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination Conn Shrouded Header HDR 3 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 3Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, POSTHEADERASSEMBLY,3POSITION,VERTICAL,1.5MMPITCH,DIPSTANDARDTYPE TE Connectivity AMP Mini CT 系列 1.5mm节距 3路 (1排) 直 PCB 针座, 焊接端接 , 通孔 MINI CT SGL DIP V 3P NAT
292228-3
te connectivity / amp
Conn Shrouded Header HDR 3 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 3POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H 1.5 MINI CT SGL H SMT W/O BOSS

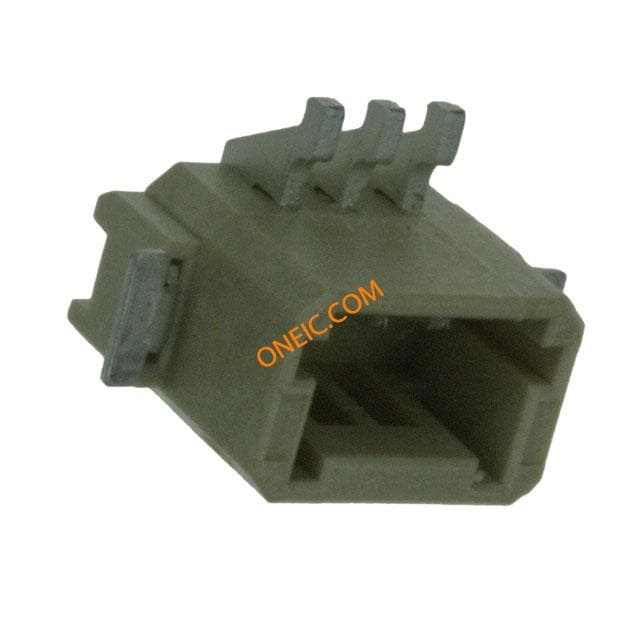

2106091-2
