点击放大查看

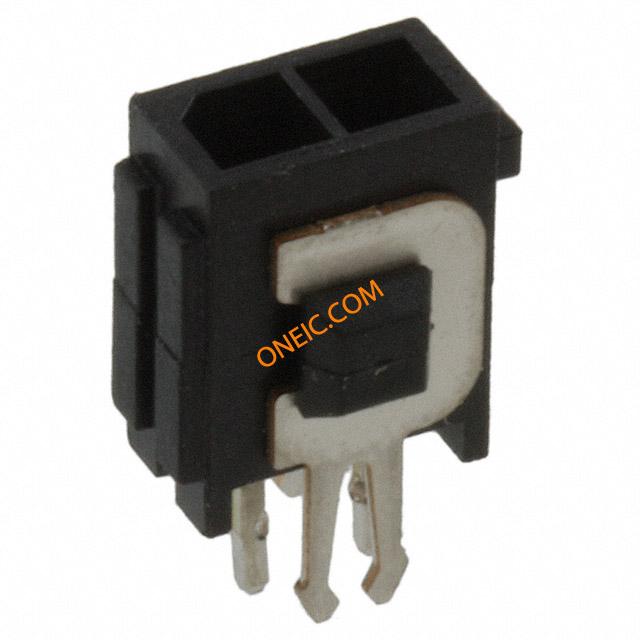

3-794680-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DUAL VERT TIN Pin & Socket Connectors 2P VERT HDR PLUG 3.18MM 250V 5A BLACK 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET CONNECTOR, PLUG, 2POS, 3MM 02P MICRO MNL ASSY,VRT,THRU LF |
| 分类 |
商业参数
| 标准包装规格 | 533 | 标准包装数量 | Bulk |
| 工厂包装数量 | 533 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 间距 | 3 mm |
| 重量 | 0.002 | 镀层 | Tin |
| 包装方式 | Bulk | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 极化 | Without | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Matte Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through-Hole | 排数 | Dual |
| 触头材料 | Brass | 壳体材料 | High Temperature Nylon |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 接触件端接 | :Through Hole Vertical |
| 位数 | 2 | 中心触点材料 | 3.00 [0.118] |
| 接触镀层厚度 | 100µin (2.54µm) | 第一连接器安装类型 | :PCB |
产品信息
| 备注 | Retention feature located on end contacts only. | 类型 | Power |
| 连接器性别 | HDR | 系列 | Micro Mate-N-Lok |
| 产品特性 | Board Lock | 制造商全称 | AMP |
| 产品子类型 | Header Assembly | 加载位置数 | All |
相关型号

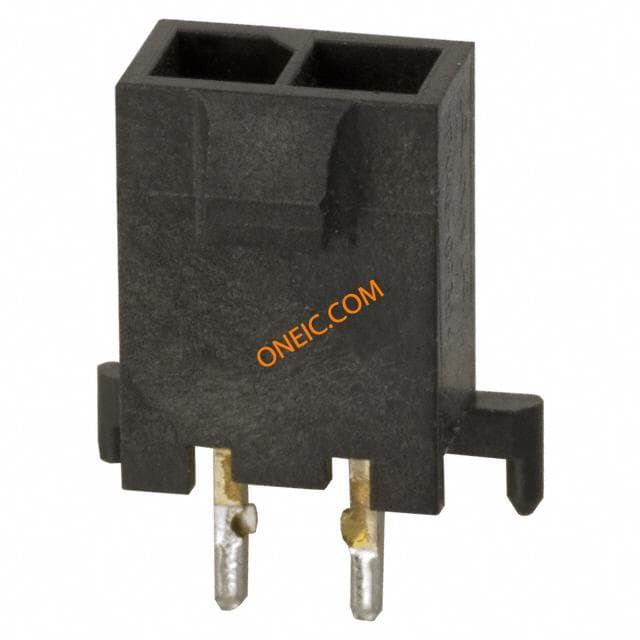

2-1445050-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS TIN T/H TE Connectivity 3mm 2 Way 1 Row Straight Through Hole Male Multiway Connector Pin & Socket Connectors HDR VERT 2 POS TIN SINGLE ROW Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET CONNECTOR, HEADER, 2POS, 3MM Header2waypinMicroMate-n-Lok Pin header Pitch3 mm Poles 2 Contact DesignMale MATE-N-LOK, 2-1445050-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 MICRO MNL HDR ASSY S/ROW LF

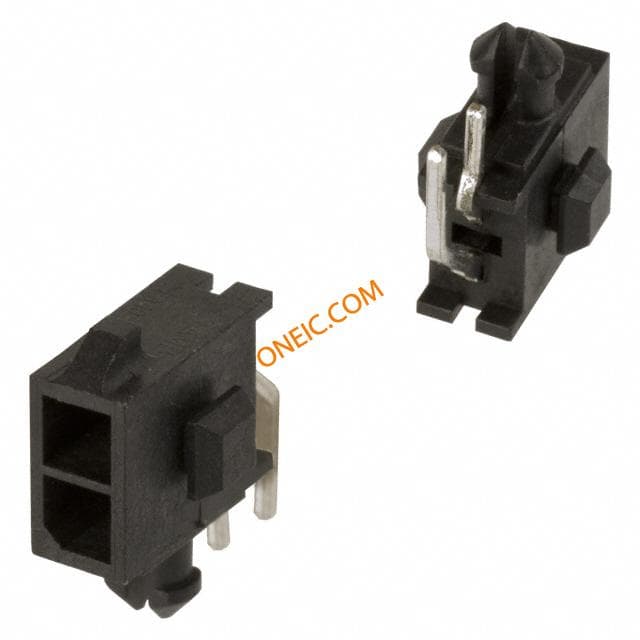

3-794618-2
