2-1445050-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS TIN T/H TE Connectivity 3mm 2 Way 1 Row Straight Through Hole Male Multiway Connector Pin & Socket Connectors HDR VERT 2 POS TIN SINGLE ROW Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET CONNECTOR, HEADER, 2POS, 3MM Header2waypinMicroMate-n-Lok Pin header Pitch3 mm Poles 2 Contact DesignMale MATE-N-LOK, 2-1445050-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 MICRO MNL HDR ASSY S/ROW LF |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 5A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 5.67 mm |
| 间距 | 3 mm | 高度 | 9.24mm |
| 重量 | 0.00001 | 包装方式 | Tray |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 极化 | With | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Matte Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through-Hole | 排数 | Single |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 3.00 [0.118] | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 触点数 | 2 |
| 接触件端接 | :Through Hole Vertical | 位数 | 2 |
| 接触镀层厚度 | 100µin (2.54µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mate-N-Lok | 产品特性 | Board Guide |
| 产品子类型 | Header Assembly | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 温度额定值 | High | 工作温度 | -40C to 105C |
| 结工作温度 | 105C | ||
相关型号
1445022-2
te connectivity / amp
Conn Housing RCP 2 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 2POS MATE-N-LOK 2 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 2P Conn Housing RCP 2 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, RECEPTACLE, 2POS, 3MM RECEPTACLE, SINGLE ROW, 2WAY Connector,SoftShell;Nylon;Receptacle;Black;2;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 2 MATE-N-LOK Micro, 1445022-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 2 路 直 母 压接连接器外壳 MICRO MNL RECEPT HSG SINGLE R

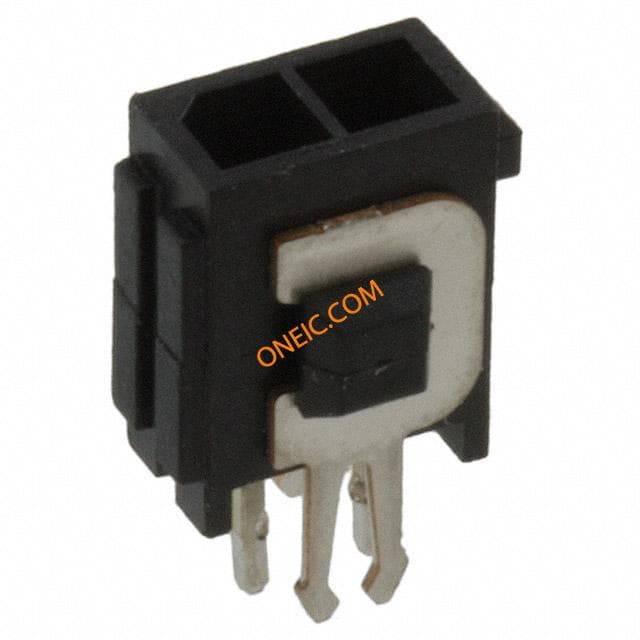

3-794680-2
