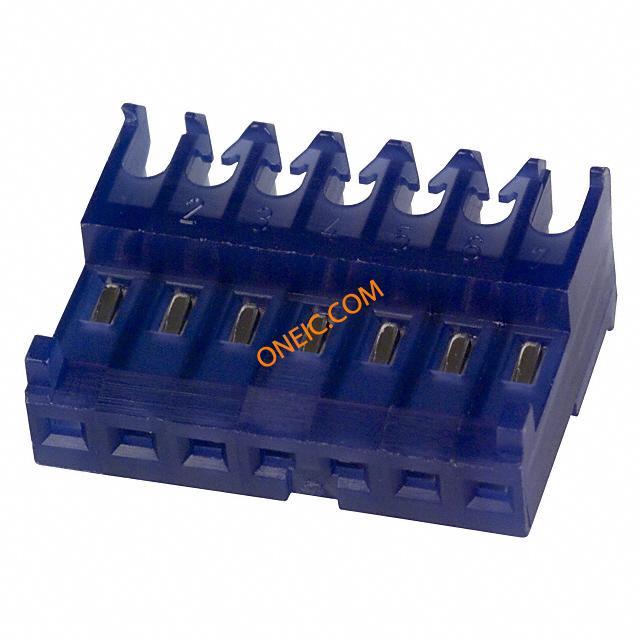

3-644564-7

点击放大查看

3-644564-7

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 26AWG MTA100 Conn IDC Connector RCP 7 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA100 CONN ASSY F/T 26AWG
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗IDC
最大额定电流5/Contact A最小供电电压250VAC

机械参数

颜色Blue深度7.75 mm
间距2.54 mm高度13.21 mm
长度17.78 mm [ .7 in ]包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色白色出线方向90°
电缆类型分离式导线, 绞线导线线规26 AWG
端接方式IDT触头类型Female Socket
极化Polarizing Tab第二连接器With
触点形状Square外壳颜色Blue
安装类型Free Hanging (In-Line)连接器类型Feed Thru
接触镀层Tin Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Cable
排数1壳体镀层Nickel
外壳材料（壳体）标准连接器用途Receptacle
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon总长度17.78 mm
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式插座配接方向With
触点数7端接表面处理带有
接触件端接Locking Lance绝缘直径1.52 mm [ .06 in ]
位数7兼容外壳尺寸（如TM-700等）MTA .100 头
触头长度-柱电源安装孔直径带有
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.12-0.15² [26]静电放电屏蔽带有
护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别RCP产品特性Feed Through, Polarizing Key
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

环境参数

工作温度-55C to 105C
