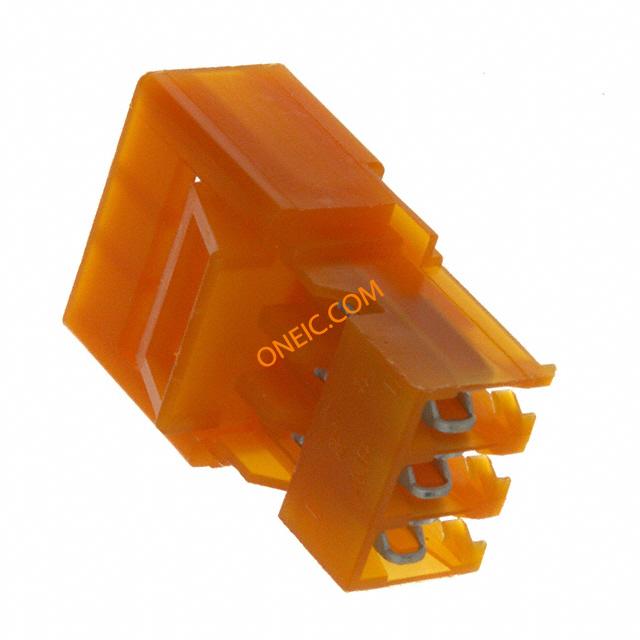

3-641435-3

点击放大查看

3-641435-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector M 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers 03P MTA156 CONN ASSY ORNG Headers & Wire Housings REC 03P C/E 18AWG POSTED Conn IDC Connector M 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 3Mating Type = PlugConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
UL阻燃等级UL 94V-2材料阻燃等级UL 94V-2

电气参数

供电电压600接触电阻3 mohm
连接器阻抗刺破式压接 (IDC)最大额定电流7/Contact A
最小供电电压600VAC

机械参数

颜色Orange深度12.37 mm
间距3.96 mm高度25.65 mm
长度15.85密封型Not Sealed
包装方式Bulk遮蔽类型Yes
导线类型Discrete or Ribbon Cable壳体颜色橙色
出线方向90°电缆类型Discrete or Ribbon Cable
导线线规18 AWG端接方式IDT
触点形式Male Pin触头类型Male Pin
第二连接器With触点形状Square
外壳颜色Orange安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin
触点时序Without安装样式Wire
引脚数3排数1
封装形式Plug壳体镀层Nickel
连接器用途Plug高度（英寸）12.37
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon总长度15.85 mm
安装特性Without包装数量2000
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Pin (Male)
配接方向Without触点数3
接触件端接Locking Lance绝缘直径2.41 mm [ .095 in ]
位数3兼容外壳尺寸（如TM-700等）MTA .156 连接器组件
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局3.96 [0.156]接触镀层厚度80µin (2.03µm)
线规或范围 - mm²0.8-0.9² [18]静电放电屏蔽带有
护套（绝缘）厚度50 µm [ 1.27 µin ]

产品信息

备注MTA-156 posted connectors (Closed End and Feed-Thru) will ONLY mate with MTA-15类型IDC Connector
连接器性别M系列MTA-156
产品特性Closed End主要用途Closed End
制造商全称AMP产品子类型MTA-156 Posted Wire-to-Wire Connectors
连接类型Wire安装类型Closed End
输出配置Free Hanging (In-Line)应用细节Power

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C

文档与媒体

在线文档
3-641435-3?RQPN=3-641435-3
