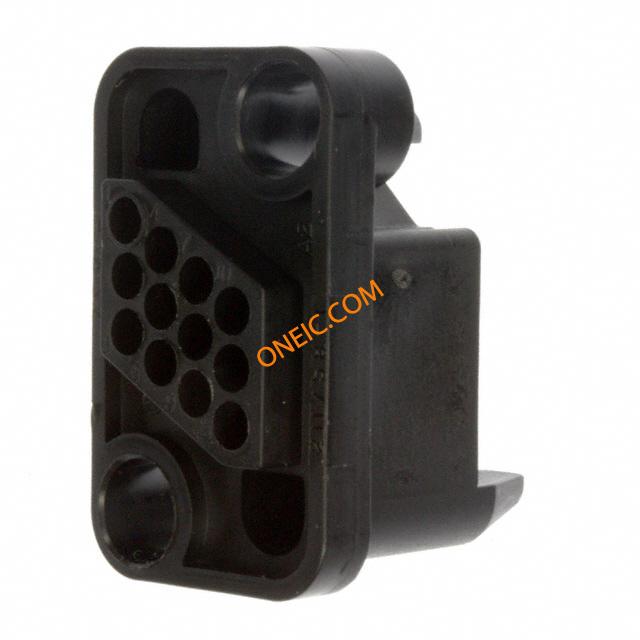

211758-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 5.08mm ST Metrimate Connectors CONN PLUG 12 POS METRIMATE Housing Drawer 12 way Socket Metrimate Pin & Socket Connectors 12 POS PLUG PANEL Conn Housing PL 12 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 12PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONNECTOR, RECEPT 12 METRIMATEDRAWERCONN,PLUGHSG,12POSN,METRIMATE TE Connectivity Metrimate 系列 4 行 5.08mm 节距 12 路 直 公 压接连接器外壳 PLUG HSG,12 POSN,METRIMATE |
| 分类 |
商业参数
| 其他名称 | 2117581 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 198 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 38.1mm |
| 间距 | 5.08 mm | 宽度 | 30.23mm |
| 高度 | 38.1 mm | 长度 | 49.33mm |
| 重量 | 0.204 | 包装方式 | Bulk |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing |
| 安装样式 | PCB | 排数 | 4 |
| 连接器样式 | Drawer | 连接器用途 | Drawer |
| 壳体材料 | Thermoplastic - GF | 总长度 | 49.33 mm |
| 安装特性 | Without | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 传感器连接器 | Without | 触点数 | 12 |
| 位数 | 12 | 中心触点表面处理 | 5.08 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Metrimate |
| 产品特性 | Guide Pin | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 抽屉总数 | Standard | 其他规格 | No |
| 适用产品/相关产品 | PCB Connector | ||
环境参数
| 工作温度 | -55C to 130C | ||
文档与媒体
相关型号
66394-8
