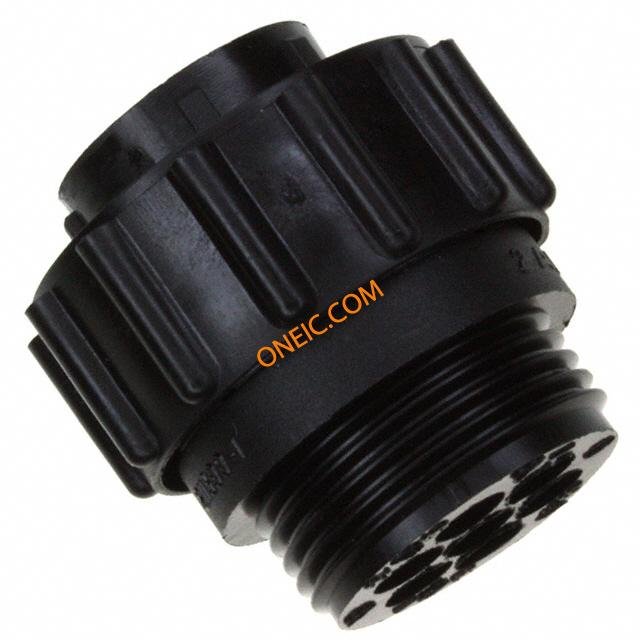

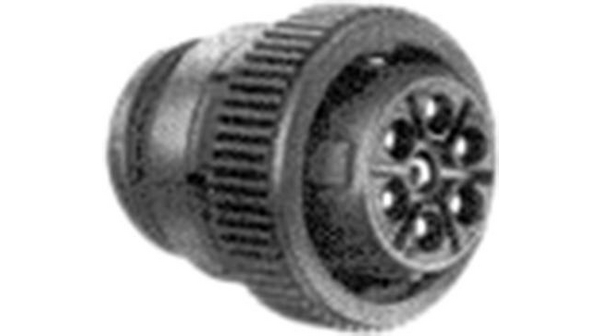

211399-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN PLUG CPC 7POS STD SER1 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 13 with Female Contacts Standard Circular Connector PLUG 7P shell size 13 Conn CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 13-7, CABLE ConnectorHousing;CPCPlugAssy;7Pos.;Sz.13;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:7 Plug CPC1 Poles=7, accepts female contacts / Free hanging/cable mount, 211399-1, TE Connectivity TE Connectivity 7路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 13-7 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | Yes | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized/CSA/VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 通道数量 | 7 |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.002 | 直径 | 27.94 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 13 | 方向 | A |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 3/4 - 20 UNEF-2A | 触点形式 | 7Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | size 13 | 连接器样式 | Plug |
| 插入角度 | :13-7 | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 总长度 | 27.43 mm | 包装数量 | 20 |
| 主要材料 | CircularPlasticConnector | 连接器 - 电缆 | plug |
| 端接样式 | Wire | 第一触头极性 | Female |
| 配接方向 | Keyed | 触点数 | 7 |
| 绝缘直径 | 2.54 [0.100] | 位数 | 7 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Cable | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 13-7 | ||
产品信息
| SPG | 20 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | PL |
| 系列 | Series 1 | 钥匙类型 | A |

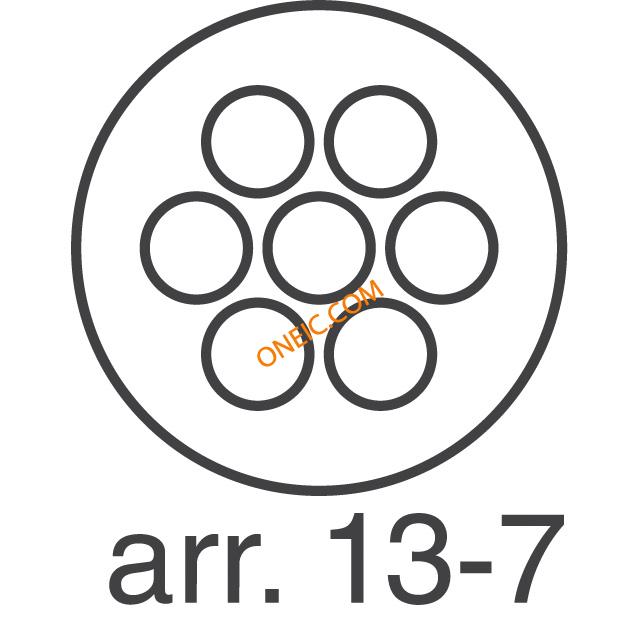

| 预加载 | No | 排列方式 | 13-7 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Series1 |
| 产品子类型 | Connector | 适配器系列 | CPC Series 1 |
| 单元数量 | 1 | 射频系列/标准 | 211399 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
