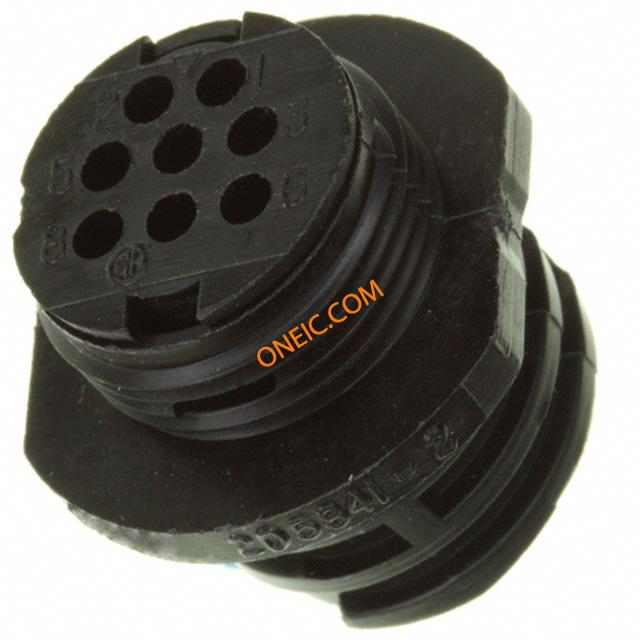

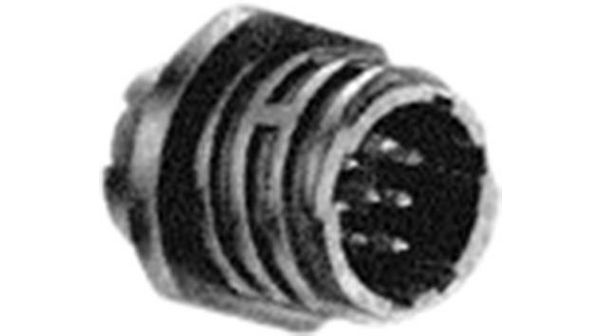

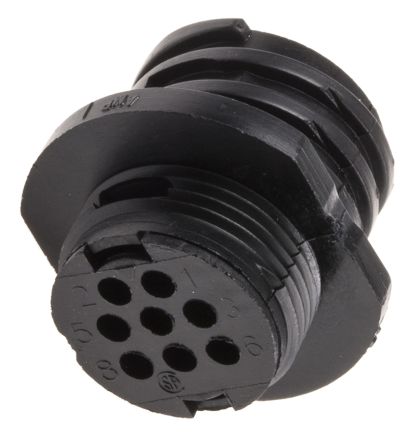

205841-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CPC Connectors CONN RECEPT CPC 8POS STD SER 2 8 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector RECP STD F.H. 11-8 Conn CPC PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 8ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR ConnectorHousing;CPCRecept.Assy;8Pos.;Sz11;Series2;FreeHang;StdSex Receptacle CPC2 Poles=8, accepts male contacts / Free hanging/cable mount, 205841-2, TE Connectivity TE Connectivity 8路 电缆安装 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 11-8 |
| 分类 |
商业参数
| 交货时间 | 49 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 8 | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Black | 深度 | 20.37 mm |
| 高度 | 23.49 mm | 密封型 | No |
| 重量 | 0.014 | 直径 | 23.49 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 11 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触点形式 | 8Signal |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 连接器样式 | Receptacle | 插入角度 | :11-8 |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 总长度 | 20.55 mm | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 8 |
| 接触件尾部长度 | 20D | 绝缘直径 | 1.73 [0.068] |
| 位数 | 8 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 11-8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 2 |
| 预加载 | No | 排列方式 | 11-8 |
| 制造商全称 | Series2 | 产品子类型 | Connector |
| 射频系列/标准 | 205841 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
