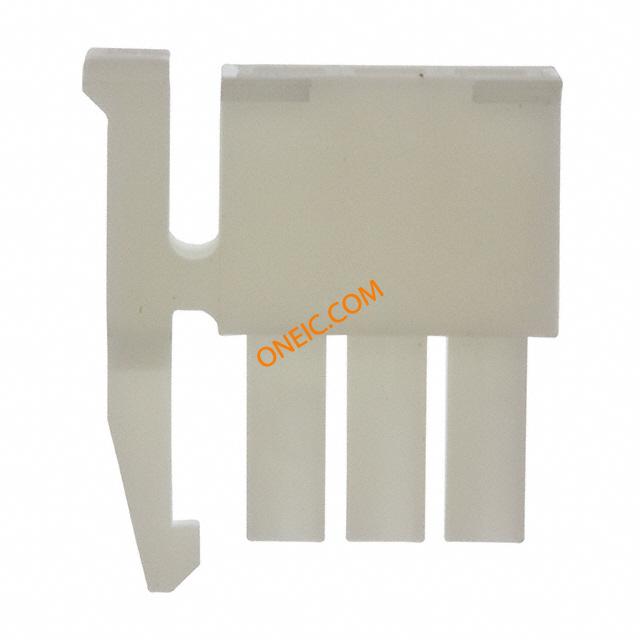

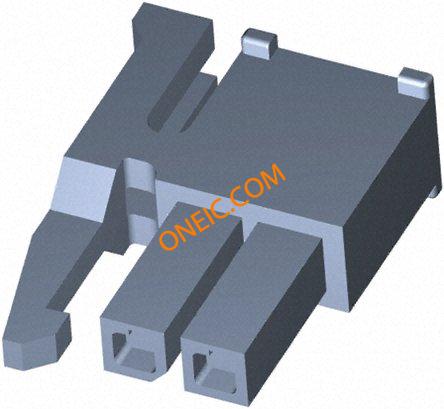

2029102-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 3mm Crimp ST Loose Piece Mini-Universal MATE-N-LOK Connectors CONN RCPT 3MM 3POS MICRO M-N-L Connector,housing,recpt,M-N-L,3 Way,Ntrl Pin & Socket Connectors RECPT 3 POS NATURAL LOW PROFILE Conn Housing RCP 3 POS 3mm Crimp ST Loose Piece Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 3P MICRO MNL RCPT SR SIDE WHT |
| 分类 |
商业参数
| 其他名称 | A99179 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 250.0 | 额定电压 | 250 V |
| 供电电压 | 250 | 中心频率 | 带有 |
| 最大额定电流 | 5 | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 间距 | 3 mm |
| 宽度 | 5.26mm | 高度 | 5.26 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 20 AWG | 触头类型 | Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Housing | 接触镀层 | Without |
| 紧固类型 | Latching | 安装样式 | Free Hanging |
| 排数 | 1 | 封装形式 | Receptacle |
| 连接器样式 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 包装数量 | Loose Piece |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 中心触点表面处理 | 3.0 |
| 典型触点布局 | In-Line | ||
产品信息
| 备注 | Contacts sold separately. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Micro MATE-N-LOK |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 插拔次数 | With | 测试温度 | 标准件 - 非灼热丝 |
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
