点击放大查看

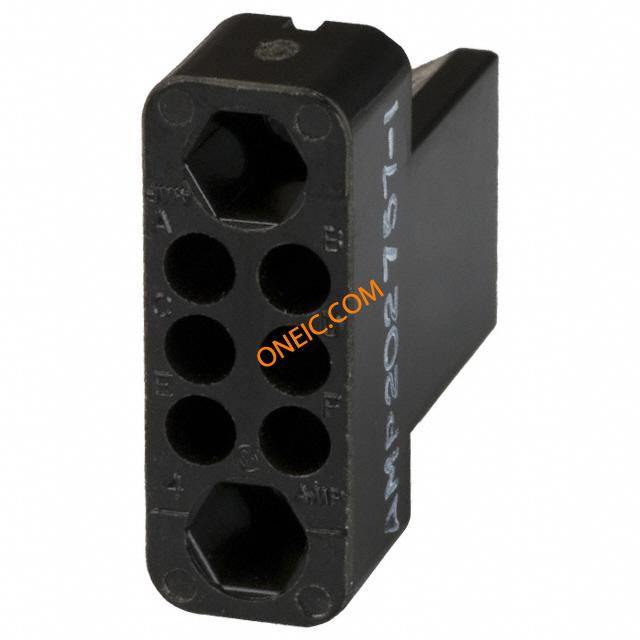

202757-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 3.81mm ST Panel Mount Loose Piece M Series Connectors CONN HOUSING RECEPT 6POS BLACK Pin & Socket Connectors FEM BLOCK CONN 6 POS Conn Housing RCP 6 POS 3.81mm ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 6Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, RECEPTACLE, 6WAY MINIATURERECTANGULARBLOCK,FEMAL,6POS 6 POS. FEM. BLOCK |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 363 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 间距 | 3.81 mm |
| 重量 | 0.003 | 包装方式 | Bulk |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Standard | 接触镀层 | :- |
| 排数 | 2 | 连接器用途 | Receptacle |
| 触头材料 | :- | 壳体材料 | Phenolic |
| 安装特性 | None | 包装数量 | Loose Piece |
| 第一触头极性 | :Socket | 触点数 | 6 |
| 接触件端接 | :- | 位数 | 6 |
| 中心触点材料 | No | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :M |
| 产品子类型 | Housing | ||
