201570-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONTACT PIN ASSY. Multimate CONN PIN 14AWG GOLD CRIMP Multimate II Pin Contact,Gold 14 AWG Standard Circular Contacts PIN SIZE#16 Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 2.00-2.15² [14] mm [AWG]Brass Contact MaterialType IISearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 14AWG, CRIMP MultimateContact;Pin;Gold(30)OverNickel(50);14AWG;Brass;16;Wire |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 输出电流 | :13A | 最大额定电流 | 13 A |
机械参数
| 重量 | 0.002 | 镀层 | Gold |
| 直径 | 3.25 mm | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 出线方向 | No |
| 导线线规 | 14 AWG | 端接方式 | Crimp |
| 触点形式 | 1Signal | 触点尺寸 | 16 |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 外壳镀层 | Not Required | 接触镀层 | Gold over Nickel |
| 安装样式 | Cable | 触头材料 | Brass |
| 总长度 | 27.36 mm | 第一触头极性 | Socket (Female) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | :14AWG |
产品信息
| 类型 | Machined | 连接器性别 | Male |
| 系列 | Multimate Type II | 适用产品/相关产品 | CPC Connector, G Series Connector, M Series Connector |
文档与媒体
相关型号

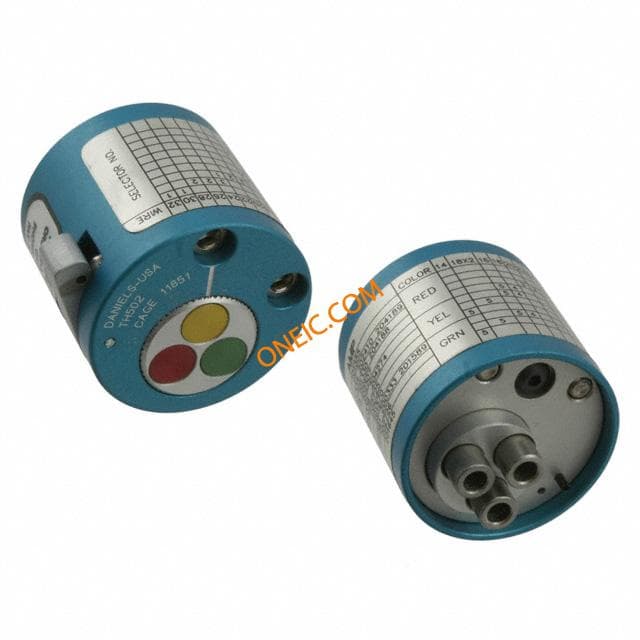

1-601967-6
